  9. 1/2" Pistol Grip Air Impact Wrench 700 ft.-lb.

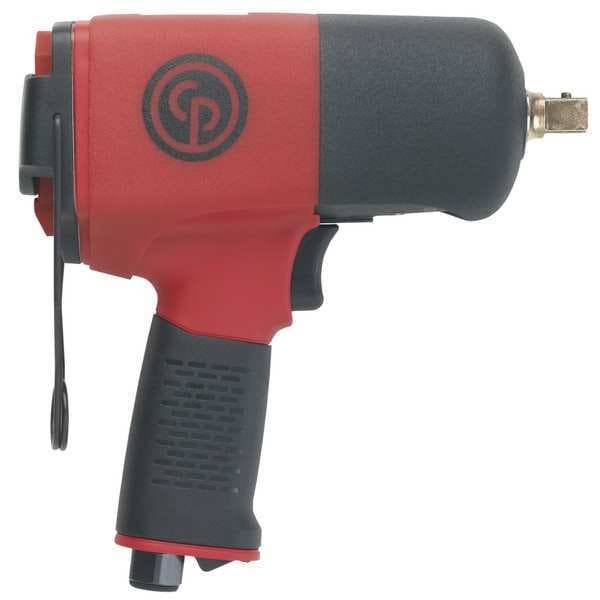

Chicago Pneumatic 1/2" Pistol Grip Air Impact Wrench 700 ft.-lb. CP8252-P - main

1/2" Pistol Grip Air Impact Wrench 700 ft.-lb.

  • Mfr # CP8252-P

  • Zoro # G6139603

product price: $349.99
/ea
Free Shipping & Returns

Key Features

Square Drive Size
1/2"
Free Speed
9,000 RPM
Air Inlet
1/4 in NPT
Handle Type
Pistol Grip
Includes
Protective Cover, Suspension Bail
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CP8252-P
Zoro #
G6139603
UPC #
015451599218
Country of Origin
Taiwan, Province of China

Dimensions

Square Drive Size
1/2"
Overall Length
7 7/8 in
Min. Hose Size
3/8 in
Air Inlet Size - Air Tools
1/4" NPT
Drive Size - Air Tools
1/2" Square
Anvil Length - Air Impacts
0.750"
Drive Size
1/2 in Square

Details

Item
Impact Wrench
Free Speed
9,000 RPM
Air Inlet
1/4 in NPT
Handle Type
Pistol Grip
Includes
Protective Cover, Suspension Bail
Anvil Type - Air Impacts
Standard
Blows per Minute
1400
Handle Material
Composite
Max. Bolt Capacity
3/4 in
Style
Pistol Grip
Duty Cycle - Air Tools
Industrial Duty
Average CFM @ 15 Second Run Time
6.30
Retainer Type
Pin Detent
Item - Air Impact Wrenches
Air Impact Wrench
Housing Material
Aluminum
Body Style - Air Tools
Pistol
CFM @ Full Load
25.4
Required Pressure
90 PSI
Blows per Minute - Air Tools
1400
Retainer Type - Air Impacts
Pin
Tool Weight
4.4 lb
Max. Torque
700 ft.-lb.
Features
Powerful But Easy To Control For Assembly/Disassembly Operations, Progressive Trigger & Rubber Grip
Duty
Industrial
Torque Range
110 to 553 ft.-lb.
Anvil
Standard
Standards
EN ISO 11148-6:2013, ISO-28927-2
Impact Rated
Yes
Number of Speed Settings
3
Max. Air Pressure
90 psi
Clutch Style
Twin Hammer
Power to Weight Ratio
159.1 ft-lb/lb
Drive Type
Standard
Tool Style
Compact
Power Source
Air Powered
Vibration Level
8.8 m/sq sec
Impact Sound Level
105 dB
Air Consumption
25 cfm
Built-In Light
No
Impacts per Minute
1,400
Duty Rating
Industrial Duty
Exhaust Location
Bottom
Air Pressure
90 psi
Min. Air Pressure
90 psi
Fastening Torque
553 ft-lb
Breakaway Torque
700 ft-lb

Description

Impact Wrench, Power Source Air Powered, Air Consumption 25 cfm, Air Inlet 1/4 in NPT, Air Pressure 90 psi, Max. Air Pressure 90 psi, Min. Air Pressure 90 psi, Min. Hose Size 3/8 in, Exhaust Location Bottom, Duty Rating Industrial Duty, Breakaway Torque 700 ft-lb, Fastening Torque 553 ft-lb, Free Speed 9,000 RPM, Impact Rated Yes, Impact Sound Level 105 dB, Impacts per Minute 1,400, Number of Speed Settings 3, Power to Weight Ratio 159.1 ft-lb/lb, Max. Bolt Capacity 3/4 in
