  9. 5/8" D-Handle Air Drill 800 rpm

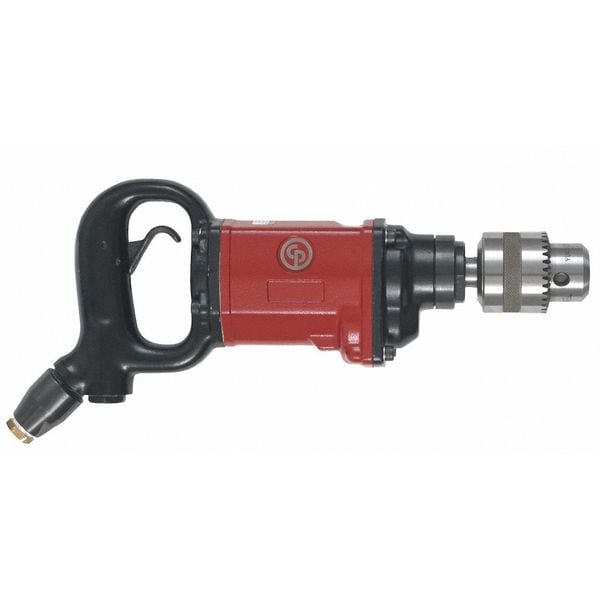

Chicago Pneumatic 5/8" D-Handle Air Drill 800 rpm CP1816 - main

5/8" D-Handle Air Drill 800 rpm

  • Mfr # CP1816

  • Zoro # G4281691

product price: $1,675.79
/ea
Free Shipping & Returns

Key Features

HP
1.0
CFM @ Full Load
42.4
Air Inlet
3/8 in
Reversing
No
Min. Hose Size
1/2"
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CP1816
Zoro #
G4281691
UPC #
-
Country of Origin
Japan

Dimensions

Min. Hose Size
1/2"
Overall Length
14 1/4 in
Chuck Size
5/8 in
Overall Height
6 7/8 in
Spindle Thread Size
5/8"-16
Overall Width
4 3/8 in

Details

Item
Drill
HP
1.0
CFM @ Full Load
42.4
Air Inlet
3/8 in
Reversing
No
Required Pressure
90 psi
Free Speed
800 RPM
Style
D-Handle
Housing Material
Aluminum
Duty
Industrial
Handle Type
D-Handle
Includes
Chuck Key
Drill Chuck Type
Keyed
Gear Train
Planetary
Throttle Type
Trigger
Tool Weight
8.1 lb
Variable Speed
Yes
Handle Material
Rubber
Duty Rating
Industrial Duty
Exhaust Location
Handle
Vibration Level
2.5 m/sq sec
Drilling Capacity in Steel
1/2 in
Torque Range
0 ft-lb to 25.3 ft-lb
Drilling Capacity in Aluminum
5/8 in
Bearing Design
Ball
Horsepower
1 hp
Air Pressure
90 psi
Air Consumption
42.4 cfm
Max. Torque
25.3 ft-lb
Power Source
Air-Powered
Drilling Capacity in Cast Iron
5/8 in
Noise Level
90 dB
Min. Torque
0 ft-lb
Chuck Material
Metal
Application
Drilling, Reaming Holes
Reversible
No

Description

Air-Powered Drill, Free Speed 800 RPM, Handle Material Rubber, Variable Speed Yes, Throttle Type Trigger, Housing Material Aluminum, Gear Train Planetary, Overall Length 14 1/4 in, Tool Weight 8.1 lb
