Shop CHICAGO PNEUMATIC

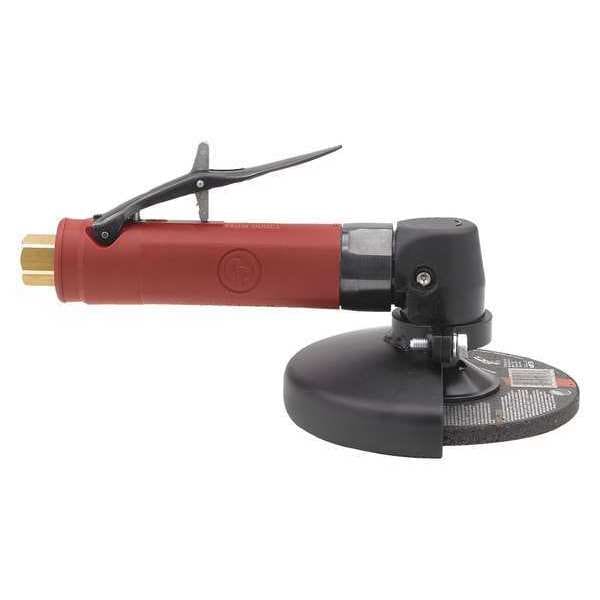

Angle Angle Grinder, 1/4 NPT Female Air Inlet, Heavy Duty, 22,000 RPM, 0.5 hp

  • Mfr # CP3019-20A3

  • Zoro # G4141719

product price:
$
787.99
/ea
Free Shipping & Returns

Key Features

Overall Length
6 3/8 in
Air Inlet
1/4 in NPT Female
Horsepower
0.5 hp
Free Speed
22,000 RPM
Max. Speed
20,000 RPM
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
CP3019-20A3
Zoro #
G4141719
UPC #
015451686161
Country of Origin
Hungary

Dimensions

Overall Length
6 3/8 in
Min. Hose Size
5/16 in
Spindle Thread Size
3/8"-24
Wheel Diameter
3 in
Air Inlet Connection Size
1/4 in
Hose Size - Minimum
5/16 in
Wire Rope Length
6 3/8 in
Length
6 3/8 in

Details

Item
Air Angle Grinder
Air Inlet
1/4 in NPT Female
Horsepower
0.5 hp
Free Speed
22,000 RPM
Max. Speed
20,000 RPM
Grinder Type
Angle
Includes
Exhaust Hose, Robust Steel Keyless Rotative Wheel Guard, Wheel Guard, Flange, Nut and Wheel Nut Wrench, Side Handle, Wheel Guard, Flange, Nut and Wheel Nut Wrenches, Wrenches, Piped Exhaust, Wheel Guard, Flanges and Nut, Wheel Nut Wrenches
CFM @ Full Load
19.08
Grinder Orientation
Angle
Handle Material
Composite
Duty
Heavy Duty
Throttle
Safety Lever
Lever Type
Safety Lever
Housing Material
Aluminium, Composite over-sleeve
Tool Weight
1 lb
Variable Speed
Yes
Reach
Standard Reach
Exhaust Location
Rear
Safety Features
Lock-Off Switch, Lock-On Switch, Streamlined Safety Lever
Vibration Level
13 m/sq sec
Switch Type
Lever
Power Source
Air Powered
Air Consumption
19 cfm
Head Type
Standard Head
Material Application
Ceramic, Glass, Steel, Wood
Air Inlet Gender
Female
Safety Stop Mechanisms
Safety lever, Wheel Guard, Rotative Band (Guard), Key Swiveling Guard, Governed Motor
Switch Location
Top
For Wheel Type
Type 1, Type 27
Throttle Type
Lever
Speed Ranges
0/13500/20000 RPM
Lock-Off Switch
Yes
Anti-Restart Technology
Yes
Dust Sealed Switch
No
Guard Adjustment
Tooled Adjustable
Air Pressure
91 psi
Air Inlet Type
NPT
Grip Material
Aluminium, Composite over-sleeve
Kit Contents
(1) Bare Tool
Anti-Kickback Clutch Type
None
Standards
Not Rated
Number of Speed Settings
2
Case Included
No
Dust Management
None
Anti-Vibration Technology
Yes
Grip Style
Straight
Guard Material
Composite
Brake Type
None
Minimum Speed
20,000 RPM
Lock-On Switch
Yes
Tool Life
Ultra Durable
Speed - Minimum
20,000 RPM
Accessory Free Tool Change
No
Frequency of Use
Frequent Maintenance to Heavy Production
Speed - Maximum
20,000 RPM
Tether Style
Tether Capable
Handle Type
Straight
Robot Mounting Components Included
Tool Only
Power Source - TS Only
Air Powered
Power Source - old
Air Powered

Description

Air Angle Grinder, Wheel Diameter 3 in, Horsepower 0.5 hp, For Wheel Type Type 1, Type 27, Max. Speed 20,000 RPM, Air Inlet 1/4 in NPT Female, Air Inlet Connection Size 1/4 in, Air Inlet Gender Female, Air Inlet Type NPT, Lever Type Safety Lever, Spindle Thread Size 3/8 In.-24, Reach Standard Reach, Duty Heavy Duty, Speed Ranges 0/13500/20000 RPM, Variable Speed Yes
