  5. Heavy Duty Impact Wrench W/ 6" Extension/No 5 Spline, 1" Drive

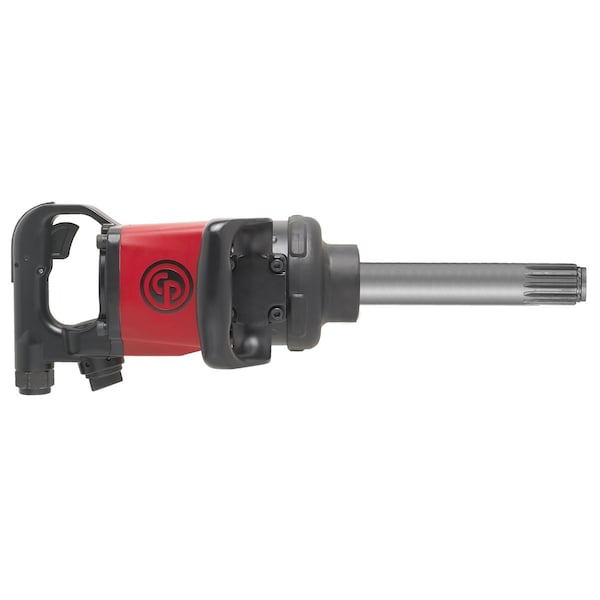

Chicago Pneumatic Heavy Duty Impact Wrench W/ 6" Extension/No 5 Spline, 1" Drive CPT7782-SP6 - main

Heavy Duty Impact Wrench W/ 6" Extension/No 5 Spline, 1" Drive

  • Mfr # CPT7782-SP6

  • Zoro # G3338634

product price:  $1,225.99
/ea
Free Shipping & Returns

Key Features

Square Drive Size
#5 spline"
Air Inlet
0.5 "
Torque Range
500 - 2000 Nm (forward)
Average CFM @ 15 Second Run Time
10 cfm
Overall Length
20.4"
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CPT7782-SP6
Zoro #
G3338634
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

Square Drive Size
#5 spline"
Overall Length
20.4"
Bolt size
M32
Min. hose size
1/2"

Details

Item
Heavy Duty Impact Wrench W/ 6" Extension
Air Inlet
0.5 "
Torque Range
500 - 2000 Nm (forward)
Average CFM @ 15 Second Run Time
10 cfm
Blows per Minute
500
Features
High efficiency motor, yet economical with durable reinforced clutch mechanism; Durable impact wrench with great power for the toughest jobs on heavy vehicles; #5 spline straight impact wrench with 6" extended anvil; 1920 ft.lbs - 2600 Nm of maximum torque in reverse; Pinless closed reinforced rocking dog impact mechanism; Socket retainer ring combined with hole retainer; Ergonomic side handle; Full teasing trigger; Regulator with integrated forward/reverse with 3-position power settings in both directions
Vibration
7.8 m/s (ISO-28927-2)
Sound Power
111 dBa
Clutch type
Pin less closed rocking dog
Noise level
100 dBa
Free speed
5200 rpm
Handle type
D-Handle Inside Trigger
Socket retainer
Spline #5
Actual air consumption
40.7 cfm
Vibration K
1.8 m/s (ISO-28927-2)
Maximum Torque (reverse)
2600 Nm

Description

Heavy Duty Impact Wrench W/ 6 In. Extension
