Chicago Pneumatic

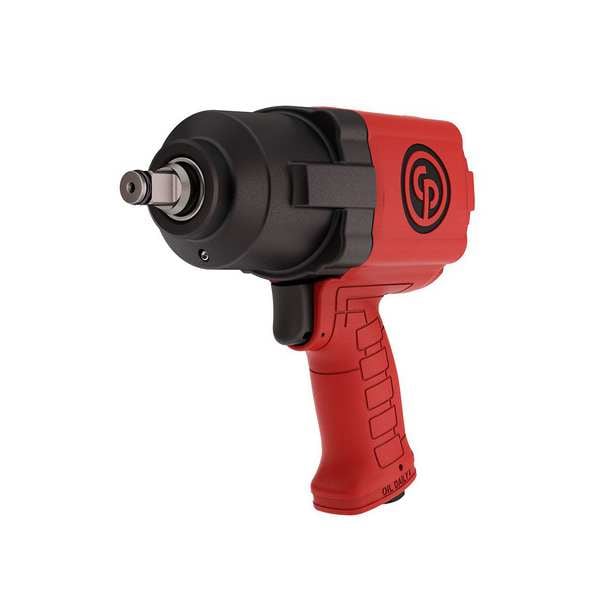

Impact Wrench, 1/2" Square

product price: $196.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Air Inlet 1/4 in NPT
  • Free Speed 10,000 RPM
  • Handle Type Pistol Grip
  • Housing Material Aluminum
  • Min. Hose Size 3/8 in
See all product information

Product Information

Dimensions

Min. Hose Size 3/8 in
Drive Size 1/2 in Square
Overall Length 7 16/25 in

Details

Air Inlet 1/4 in NPT
Free Speed 10,000 RPM
Handle Type Pistol Grip
Housing Material Aluminum
Vibration Level 8.5 m/sq sec
Impact Sound Level 104 dB
Air Pressure 90 psi
Breakaway Torque 715 ft-lb
Air Consumption 4.45 cfm
Power Source Air Powered
Built-In Light No
Retainer Type Friction Ring
Exhaust Location Bottom
Clutch Style Double Rocking Dog
Handle Material Composite
Tool Weight 4.96 lb
Impact Rated Yes
Tool Style Compact
Max. Air Pressure 90 psi
Number of Speed Settings 4
Drive Type Standard
Standards CE Certified
Features 1 Setting in Reverse, 3 Settings in Forward, Less Heat Transfer
Power to Weight Ratio 144.15 ft-lb/lb
Duty Rating Industrial Duty
Item Pneumatic Impact Wrench 1/2"
Fastening Torque 510 ft-lb

Description

Pneumatic Impact Wrench 1/2 In., Power Source Air Powered, Air Consumption 4.45 cfm, Air Inlet 1/4 in NPT, Air Pressure 90 psi, Max. Air Pressure 90 psi, Min. Hose Size 3/8 in, Exhaust Location Bottom, Duty Rating Industrial Duty, Breakaway Torque 715 ft-lb, Fastening Torque 510 ft-lb, Free Speed 10,000 RPM, Impact Rated Yes, Impact Sound Level 104 dB, Number of Speed Settings 4, Power to Weight Ratio 144.15 ft-lb/lb, Drive Size 1/2 in Square, Drive Type Standard, Retainer Type Friction Ring
