Shop CHICAGO PNEUMATIC

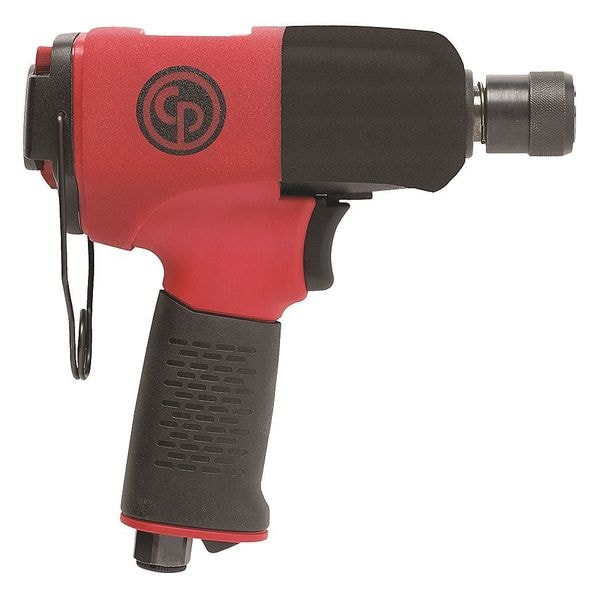

7/16" Pistol Grip Air Impact Wrench 332 ft.-lb.

  • Mfr # CP8232-QC

  • Zoro # G3296767

product price:
$
371.99
/ea
Free Shipping & Returns

Key Features

Square Drive Size
7/16" Hex
Free Speed
11,500 RPM
Air Inlet
1/4 in NPT
Handle Type
Pistol-Grip
Required Pressure
90 psi
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
CP8232-QC
Zoro #
G3296767
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

Square Drive Size
7/16" Hex
Min. Hose Size
3/8 in
Drive Size - Air Tools
7/16" Hex
Overall Length
7 in
Air Inlet Size - Air Tools
1/4" NPT
Drive Size
7/16 in
Hose Size - Minimum
3/8 in
Air Inlet Connection Size
1/4 in
Wire Rope Length
7 in
Length
7 in

Details

Item
Air Impact Wrench
Free Speed
11,500 RPM
Air Inlet
1/4 in NPT
Handle Type
Pistol-Grip
Required Pressure
90 psi
Features
Powerful But Easy To Control For Assembly/Disassembly Operations, Progressive Trigger & Rubber Grip
Handle Material
Composite
Blows per Minute - Air Tools
1250
CFM @ Full Load
21.2
Includes
Protective Cover, Suspension Bail
Style
Pistol Grip
Anvil
Standard
Duty Cycle - Air Tools
Industrial Duty
Item - Air Impact Wrenches
Air Impact Wrench
Tool Weight
3.1 lb
Housing Material
Aluminum
Average CFM @ 15 Second Run Time
5.20
Max. Bolt Capacity
7/16 in
Duty
Industrial
Max. Torque
332 ft.-lb.
Torque Range
60 to 295 ft.-lb.
Body Style - Air Tools
Pistol
Retainer Type
Quick Change Hex
Anvil Type - Air Impacts
Standard
Blows per Minute
1250
Tool Style
Compact
Drive Type
Standard
Air Pressure
90 psi
Clutch Style
Twin Hammer
Max. Air Pressure
90 psi
Standards
EN ISO 11148-6:2013, ISO-28927-2
Breakaway Torque
332 ft-lb
Impacts per Minute
1,250
Impact Rated
Yes
Vibration Level
6.6 m/sq sec
Exhaust Location
Bottom
Air Consumption
21 cfm
Impact Sound Level
100 dB
Number of Speed Settings
3
Power Source
Air-Powered
Fastening Torque
295 ft-lb
Built-In Light
No
Power to Weight Ratio
107.1 ft-lb/lb
Min. Air Pressure
90 psi
Duty Rating
Industrial Duty
Air Pressure - Minimum
90 psi
Air Pressure - Maximum
90 psi
Air Inlet Type
NPT
Bolt Capacity - Maximum
0 in
Frequency of Use
Maintenance to Light Production
Drive Shape
Hex
Tool Life
Long Lasting
Power Source - TS Only
Air-Powered
Power Source - old
Air-Powered

Description

Impact Wrench, Power Source Air Powered, Air Consumption 21 cfm, Air Inlet 1/4 in NPT, Air Pressure 90 psi, Max. Air Pressure 90 psi, Min. Air Pressure 90 psi, Min. Hose Size 3/8 in, Exhaust Location Bottom, Duty Rating Industrial Duty, Breakaway Torque 332 ft-lb, Fastening Torque 295 ft-lb, Free Speed 11,500 RPM, Impact Rated Yes, Impact Sound Level 100 dB, Impacts per Minute 1,250, Number of Speed Settings 3, Power to Weight Ratio 107.1 ft-lb/lb, Max. Bolt Capacity 7/16 in
