Shop CHICAGO PNEUMATIC

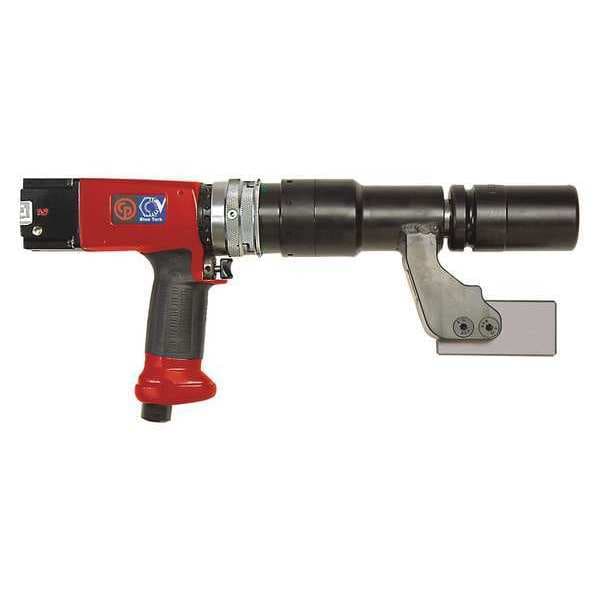

Nut Runner, Reverse Sytm, 15in L, 90 psi

  • Mfr # CP7600xB-R4P

  • Zoro # G4309457

product price:
$
8,772.99
/ea
Free Shipping & Returns

Key Features

Drive Size
1 in
Torque Range Soft Draw
250 to 650 ft.-lb.
Drive System
Reverse
Free Speed
100 RPM
CFM @ Full Load
40.0
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
CP7600xB-R4P
Zoro #
G4309457
UPC #
015451641085
Country of Origin
Hungary

Dimensions

Drive Size
1 in
Head Width
2 1/4 in
Overall Length
15 in
Min. Hose Size
3/8 in
Head Height
1 1/8 in
Air Inlet Connection Size
3/8 in
Hose Size - Minimum
3/8 in
Wire Rope Length
15 in
Length
15 in

Details

Torque Range Soft Draw
250 to 650 ft.-lb.
Drive System
Reverse
Free Speed
100 RPM
CFM @ Full Load
40.0
Air Inlet
3/8 in NPT
Base to Top
7-1/2"
Item
Nutrunner
Required Pressure
90 PSI
Throttle
Trigger
Retainer Type
Through Hole
Max. Torque
660 ft-lb
Tool Weight
15.2 lb
Max. Air Pressure
102 psi
Min. Air Pressure
44 psi
Reversible
Yes
Duty Rating
Industrial Duty
Clutch Style
Air Shut Off
Vibration Level
Less Than 2.5 m/sq sec
Noise Level
79 dB
Handle Material
Aluminum
Includes
Reaction Arm
Throttle Type
Variable-Speed Trigger
Standards
2006/42/EC (17/05/2006), EN ISO 11148-6:2012, ISO 28927-2
Air Pressure
90 psi
Exhaust Location
Bottom
Torque Range
250 to 650 ft-lb
Side to Center
1 1/8 in
Air Consumption
40 cfm
Handle Type
Pistol-Grip
Reaction Bar
Yes
Housing Material
Steel
Fastening Torque
660 ft-lb
Power Source
Air-Powered
Torque - Minimum
250 ft-lb
Frequency of Use
Frequent Maintenance to Heavy Production
Tool Life
Ultra Durable
Air Inlet Type
NPT
Air Pressure - Minimum
44 psi
Drive Shape
Square
Air Pressure - Maximum
90 psi
Torque - Maximum
650 ft-lb
Power Source - TS Only
Air-Powered
Power Source - old
Air-Powered

Description

Nutrunner, Drive Size 1 in, Torque Range 250 to 650 ft-lb, Max. Torque 660 ft-lb, Free Speed 100 RPM, Air Pressure 90 psi, Air Consumption 40 cfm, Power Source Air-Powered, Max. Air Pressure 102 psi, Min. Air Pressure 44 psi, Min. Hose Size 3/8 in, Exhaust Location Bottom, Duty Rating Industrial Duty, Air Inlet 3/8 in NPT, Handle Type Pistol-Grip, Handle Material Aluminum, Housing Material Steel, Overall Length 15 in, Fastening Torque 660 ft-lb, Reversible Yes, Tool Weight 15.2 lb
