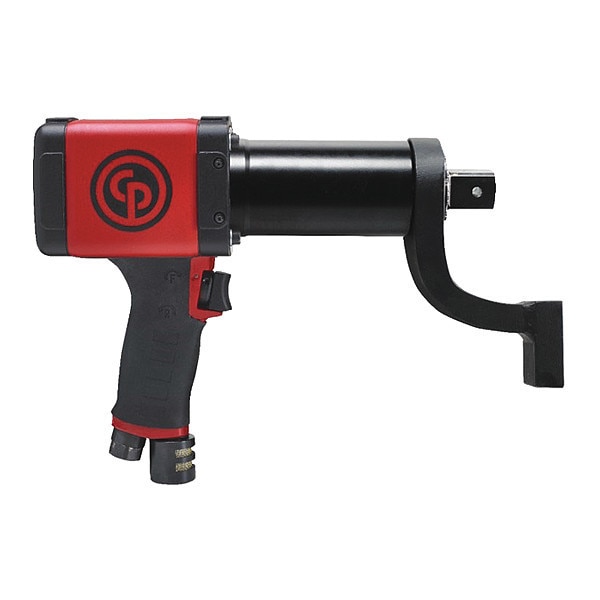

Pneumatic Nut Runner, Drive Size 1"

  • Mfr # CP6626

  • Zoro # G4377179


product price: $7,279.99
/ea
Free Shipping & Returns

Key Features

Drive Size
1 in Square
Torque Range Soft Draw
520 to 1900 ft.-lb.
Drive System
Reverse
Free Speed
10 RPM
CFM @ Full Load
48.0
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CP6626
Zoro #
G4377179
UPC #
015451775117
Country of Origin
Hungary

Dimensions

Drive Size
1 in Square
Head Width
2 7/8 in
Overall Length
12 in
Min. Hose Size
1/2 in
Head Height
1 3/8 in

Details

Torque Range Soft Draw
520 to 1900 ft.-lb.
Drive System
Reverse
Free Speed
10 RPM
CFM @ Full Load
48.0
Air Inlet
3/8 in NPT
Base to Top
8-11/32"
Required Pressure
20 to 90 psi
Throttle
Trigger
Item
Nutrunner
Power Source
Air Powered
Handle Material
Aluminum
Clutch Style
Air Shut Off
Vibration Level
Less Than 2.5 m/sq sec
Includes
Reaction Arm
Noise Level
90 dB
Exhaust Location
Bottom
Standards
2006/42/EC (17/05/2006), EN ISO 11148-6:2013, ISO 15744
Reversible
Yes
Retainer Type
Through Hole
Fastening Torque
1,900 ft-lb
Air Consumption
48 cfm
Min. Air Pressure
28 psi
Reaction Bar
Yes
Duty Rating
Industrial Duty
Torque Range
520 to 1,900 ft-lb
Throttle Type
Variable-Speed Trigger
Handle Type
Pistol Grip
Tool Weight
11.2 lb
Max. Torque
1,900 ft-lb
Housing Material
Steel
Side to Center
1 3/8 in
Max. Air Pressure
91 psi
Air Pressure
90 psi

Description

Nutrunner, Drive Size 1 in, Torque Range 520 to 1,900 ft-lb, Max. Torque 1,900 ft-lb, Free Speed 10 RPM, Air Pressure 90 psi, Air Consumption 48 cfm, Power Source Air-Powered, Max. Air Pressure 91 psi, Min. Air Pressure 28 psi, Min. Hose Size 1/2 in, Exhaust Location Bottom, Duty Rating Industrial Duty, Air Inlet 3/8 in NPT, Handle Type Pistol-Grip, Handle Material Aluminum, Housing Material Steel, Overall Length 12 in, Fastening Torque 1,900 ft-lb, Reversible Yes, Tool Weight 11.2 lb
