Chicago Pneumatic

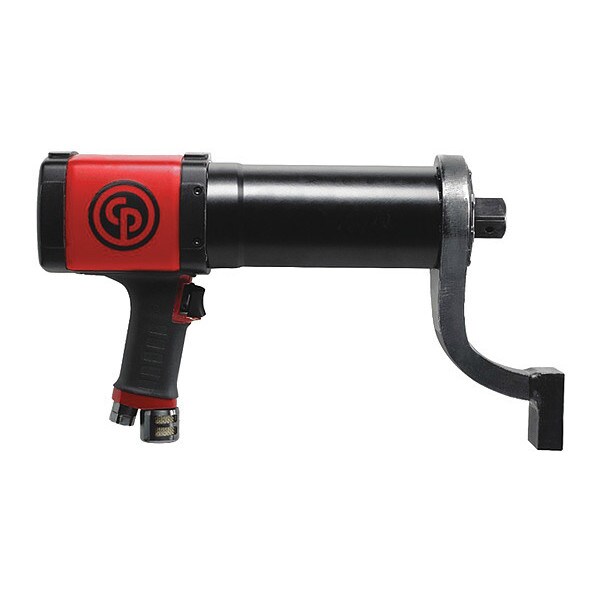

Pneumatic Nut Runner, Drive Size 1", PR

product price: $7,817.99
/pr
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Drive Size 1 in Square
  • Torque Range Soft Draw 738 to 3100 ft.-lb.
  • Drive System Reverse
  • Free Speed 10 RPM
  • CFM @ Full Load 64.8
See all product information

Product Information

Dimensions

Drive Size 1 in Square
Head Width 3 7/8 in
Overall Length 14 1/4 in
Min. Hose Size 1/2 in
Head Height 1 7/8 in

Details

Torque Range Soft Draw 738 to 3100 ft.-lb.
Drive System Reverse
Free Speed 10 RPM
CFM @ Full Load 64.8
Air Inlet 3/8 in NPT
Base to Top 8-11/32"
Required Pressure 20 to 90 psi
Throttle Trigger
Item Nutrunner
Exhaust Location Bottom
Vibration Level Less Than 2.5 m/sq sec
Torque Range 738 to 3,100 ft-lb
Standards 2006/42/EC (17/05/2006), EN ISO 11148-6:2013, ISO 15744
Handle Material Aluminum
Reaction Bar Yes
Max. Torque 3,100 ft-lb
Side to Center 1 5/8 in
Air Pressure 90 psi
Retainer Type Through Hole
Duty Rating Industrial Duty
Includes Reaction Arm
Tool Weight 19.4 lb
Reversible Yes
Housing Material Steel
Noise Level 90 dB
Min. Air Pressure 28 psi
Power Source Air Powered
Max. Air Pressure 91 psi
Fastening Torque 3,100 ft-lb
Throttle Type Variable-Speed Trigger
Handle Type Pistol Grip
Clutch Style Air Shut Off
Air Consumption 65 cfm

Description

Nutrunner, Drive Size 1 in Square, Torque Range 738 to 3,100 ft-lb, Max. Torque 3,100 ft-lb, Free Speed 10 RPM, Air Pressure 90 psi, Air Consumption 65 cfm, Power Source Air Powered, Max. Air Pressure 91 psi, Min. Air Pressure 28 psi, Min. Hose Size 1/2 in, Exhaust Location Bottom, Duty Rating Industrial Duty, Air Inlet 3/8 in NPT, Handle Type Pistol Grip, Handle Material Aluminum, Housing Material Steel, Overall Length 14 1/4 in, Fastening Torque 3,100 ft-lb, Reversible Yes, Tool Weight 19.4 lb
