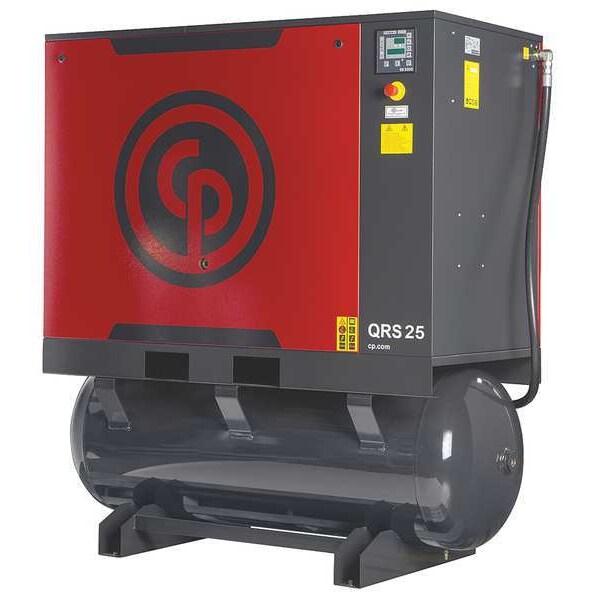

Rotary Screw Air Compressor w/Air Dryer

  • Mfr # QRS 25 HPD

  • Zoro # G3441448


product price: $22,070.00
/ea
Additional $550.00 delivery surcharge applies per item.
See details

Key Features

Item - Air Compressor
Rotary Screw Air Compressor
Air Dryer Included
Yes
HP - Air Compressor
25.0 hp
Phase - Electrical
3
Input Voltage - Air Compressor
208 to 230V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
QRS 25 HPD
Zoro #
G3441448
UPC #
738435742997
Country of Origin
Italy

Dimensions

Tank Size - Air Compressor
120 gal
Overall Length
71 in
Overall Depth
32 in
Tank Size
120 gal.
Overall Height
73 in
Size
120 Gallon
Air Tank Size
132 gal
Outlet Size
1 in

Details

Item - Air Compressor
Rotary Screw Air Compressor
Air Dryer Included
Yes
HP - Air Compressor
25.0 hp
Phase - Electrical
3
Input Voltage - Air Compressor
208 to 230V AC
Free Air CFM @ Max. Pressure - Air Compressor
92
(F)NPT Outlet
1 in
Max. Pressure - Air Compressor
132 psi
Tank Style - Air Compressor
Horizontal
Refrigerant
R-404a
HP
25
ASME Tank
Yes
Free Air CFM @ Max. Pressure
97
Full Load Amps
70/62/31
Motor RPM
4,355 RPM
Max. Pressure
132 PSI
Ambient Temp. Range
33 Degrees to 104 Degrees F
Phase
3-Phase
Tank Type
Horizontal
dBA @ 3 Feet
72
Item
Rotary Screw Air Compressor w/Air Dryer
Voltage
460V AC
Duty
Continuous
Standards
cUL Listed, UL Listed
Input Voltage
208 to 230V AC, 460V AC
Maximum Speed
4,355 RPM
Maximum Operating Pressure
132 psi
Output Power
25 hp
Pump Type
Rotary Screw
Current Rating
70/62/31 A
Duty Cycle
Continuous
Outlet Type
NPT
Outlet Gender
Female
Control Type
Automatic On/Off
Air Tank Style
Horizontal
Free Air Flow Rate @ Maximum Pressure
84.5 cfm
Sound Level
72 dBA
Enclosure Rating
NEMA 1
Enclosure Type
Totally Enclosed

Description

Rotary Screw Air Compressor w/Air Dryer, Air Tank Style Horizontal, Output Power 25 hp, Free Air Flow Rate @ Maximum Pressure 84.5 cfm, Maximum Operating Pressure 132 psi, Air Tank Size 132 gal, Phase Three, Input Voltage 208 to 230V AC, 460V AC, Air Dryer Included Yes, Pump Type Rotary Screw, Current Rating 70/62/31 A, Maximum Speed 4,355 RPM, Duty Cycle Continuous, Sound Level 72 dBA, Enclosure Type Totally Enclosed
