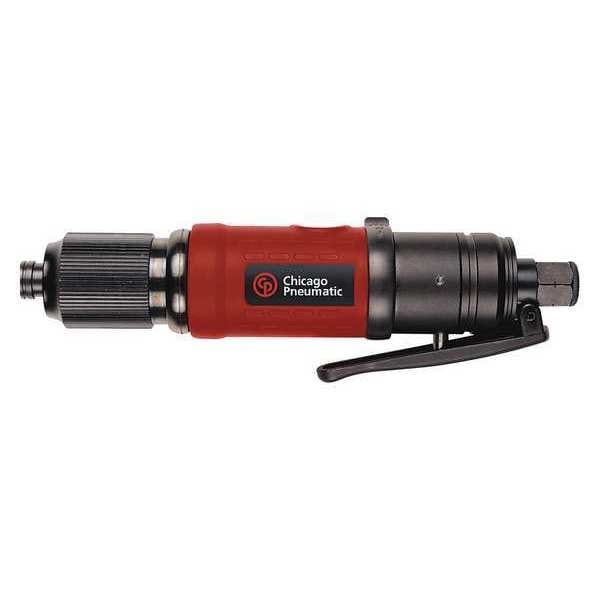

Chicago Pneumatic Screwdriver Straight Cushion Clutch CP2623 - main

Screwdriver Straight Cushion Clutch

  • Mfr # CP2623

  • Zoro # G3296968

product price: $372.99
/ea
Free Shipping & Returns

Key Features

Item - Air Screwdrivers
Air Screwdriver
Body Style - Air Tools
In-Line
Torque Range Soft Draw
13 to 35 in-lb
Max. Torque
4.1 ft-lb
Clutch Type - Air Screwdriver
Cushion
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CP2623
Zoro #
G3296968
UPC #
015451677336
Country of Origin
Taiwan, Province of China

Dimensions

Air Inlet Size - Air Tools
1/4 in NPT
Overall Length
8 1/4 in
Min. Hose Size
3/8 in
Overall Height
3 3/8 in
Overall Width
6 5/8 in
Drive Size
1/4 in

Details

Item - Air Screwdrivers
Air Screwdriver
Body Style - Air Tools
In-Line
Torque Range Soft Draw
13 to 35 in-lb
Max. Torque
4.1 ft-lb
Clutch Type - Air Screwdriver
Cushion
Throttle Type - Air Screwdrivers
Push To Start
Free Speed
1,800 RPM
Duty Cycle - Air Tools
Industrial Duty
Operation
High Torque, Ergonomic
Average CFM @ 15 Second Run Time
4.00
CFM @ Full Load
27.7
Required Pressure
90 psi
Hex Bit
1/4 in
Includes
Color Rings, Screwdriver Bits, Suspension Bail
Item
Screwdriver
Air Inlet
1/4 in NPT
Handle Type
Inline
Clutch Type
Cushion
Throttle Type
Push to Start
Application
Installing and Removing Threaded Fasteners
Noise Level
78 dB
Clutch Setting Location
External
Power Source
Air-Powered
Air Consumption
27.7 cfm
Air Pressure
90 psi
Variable Speed
Yes
Vibration Level
2.5 m/sq sec
Reversible
Yes
Bearing Design
Ball
Number of Speed Settings
Variable
Duty Rating
Industrial Duty
Tool Weight
1.8 lb
Housing Material
Aluminum
Min. Torque
1.1 ft-lb
Handle Material
Rubber
Torque Range
1.1 ft-lb to 4.1 ft-lb
Drive Configuration
Straight
Exhaust Location
Rear

Description

Air Screwdriver, In-Line Body Style - Air Tools, Torque Range Soft Draw 13 to 35 in-lb, Max. Torque 4.1 ft-lb, Clutch Type - Air Screwdriver Cushion, Push To Start Throttle Type - Air Screwdrivers, Free Speed 1,800 RPM, Industrial Duty Duty Cycle - Air Tools, Air Inlet Size - Air Tools 1/4 in NPT, 4.00 Average CFM @ 15 Second Run Time, 27.7 CFM @ Full Load, Required Pressure 90 psi, Min. Hose Size 3/8 in, Overall Length 8 1/4 in, Hex Bit 1/4 in, Ergonomic, High Torque Operation
