Compact Hydraulic Power Unit 12VDC, Double Acting, SAE 4 ports, 2800 PSI, 2.5 Liter Tank
Mfr # 253345
Zoro # G315194491
product price: $426.99
/ea
Free Shipping & Returns
Key Features
Power Source - Power Units
DC Power
Voltage
12V DC
Nominal Flow
0.5 gpm
Max. Pressure
3,000 psi
Reservoir Capacity
0.66 gal
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 253345
- Zoro #
- G315194491
- UPC #
- 615986063835
- Country of Origin
- China
Dimensions
- Overall Width
- 4 1/8 in
- Overall Height
- 5 1/2 in
- Overall Length
- 13 5/8 in
- Pressure Port Thread Size
- SAE 4
- Return Port Thread Size
- SAE 4
- Wire Rope Length
- 13 5/8 in
Details
- Power Source - Power Units
- DC Power
- Voltage
- 12V DC
- Nominal Flow
- 0.5 gpm
- Max. Pressure
- 3,000 psi
- Reservoir Capacity
- 0.66 gal
- Built-In Features
- Adjustable Relief, Pre-Wired Remote
- Item
- Hydraulic Power Unit
- HP
- 1.6 hp
- Control Station Included
- Yes
- Frame Design - Hydraulic Power Units
- Compact
- Tank Material
- Poly
- Circuit Design
- Double Acting
Description

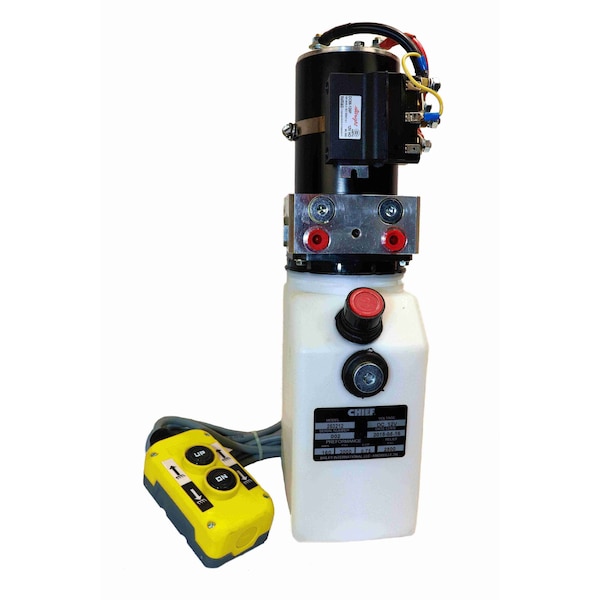

The Chief double-acting hydraulic power unit is Bailey’s most compact 12V DC unit, measuring 13.6” x 4.25” x 5.5”. It delivers a maximum pressure of 3,000 PSI and 0.5 GPM at 2800 PSI. Designed for flexibility, it can be mounted horizontally or vertically. Features include a 1.6 HP motor, 12V DC 1.2kW motor, 2.5-liter poly tank, adjustable relief, pre-wired remote, SAE 4 ports, and a compact design for efficient operation.
