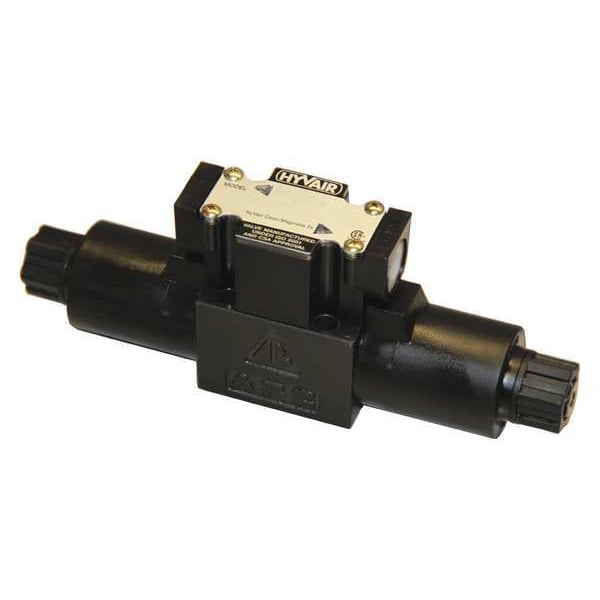

D03 3 Position Spring Center Tandem, Series Circuit, 12 GPM, 12V DC
Mfr # DO3S-2C-12D-35
Zoro # G9798686
product price:Â
$
222.99
/ea
Free Shipping & Returns
Zoro's best price: not eligible for any other offers or promotions
Key Features
Flow Rate (GPM)
12
Seal Type
Buna N
Overall Height
3.48 in
Overall Length
9.04 in
Overall Width
1.81 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- DO3S-2C-12D-35
- Zoro #
- G9798686
- UPC #
- -
- Country of Origin
- China
Dimensions
- Overall Height
- 3.48 in
- Overall Length
- 9.04 in
- Overall Width
- 1.81 in
- Size
- DO3
- Height (In.)
- 3.48 in
- Length (In.)
- 9.04 in
- NFPA Size
- D03
- Width (In.)
- 1.81 in
- Wire Rope Length
- 9.04 in
- Length
- 9.04 in
Description
Hydraulic Directional Valve, Flow Rate - Maximum 12 gpm, NFPA Size D03, Number of Positions Three Positions, Pressure - Maximum 5,000 psi, Valve Control Directional Control, Number of Ways Four-Way, Voltage 12V DC, Port Connections Tank, Center Position Tandem Center, Series DO3, Holding Current 2.5 A, Overall Height 3.48 in, Overall Length 9.04 in, Overall Width 1.81 in, Return Mechanism Spring, Seal Material Buna-N, Tank Pressure - Maximum 3,000 psi
