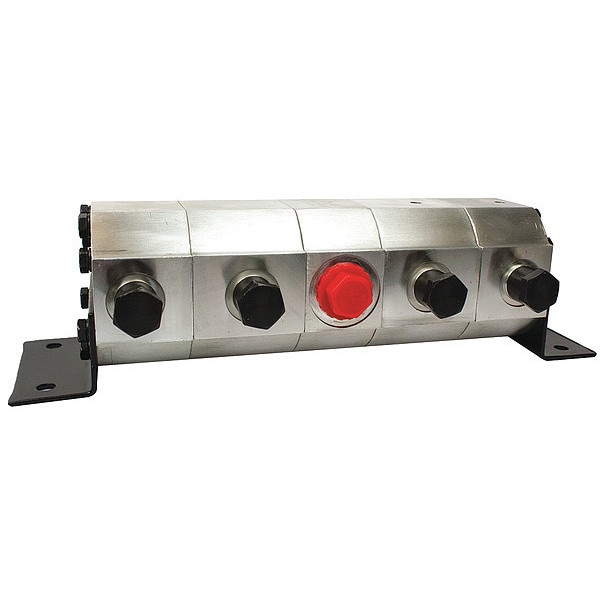

Rotary Flow Dividers 0.265 CID Per Section, .86-3.5 GPM Flow Range Per Section, 4 Section
Mfr # 253065
Zoro # G9798555
product price:Â
$
659.99
/ea
Free Shipping & Returns
Zoro's best price: not eligible for any other offers or promotions
Key Features
Flow Rate (GPM)
3.4 min Inlet flow(750 RPM) / 14 max Inlet flow(3000 RPM)
Valve Type
Flow Divider
Body Material
Aluminum
Overall Height
3.1 in
Overall Length
11.1 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 253065
- Zoro #
- G9798555
- UPC #
- -
- Country of Origin
- China
Dimensions
- Overall Height
- 3.1 in
- Overall Length
- 11.1 in
- Overall Width
- 3.92 in
- Port Size Outlet (In.)
- 7/8 -14
- Width (In.)
- 3.92 in
- Port Size Inlet (In.)
- 7/8 -14
- Length (In.)
- 11.1 in
- Height (In.)
- 3.1 in
- Outlet Port Size - Hydraulic Valves
- SAE 10
- Outlet Connection Dash Size
- 14
- Outlet Connection Size
- #10
- Inlet Connection Size
- #10
- Inlet Connection Dash Size
- 14
- Wire Rope Length
- 11.1 in
- Length
- 11.1 in
Description
Hydraulic Flow Divider, Inlet Connection Type SAE O-Ring Boss, Outlet Connection Type SAE O-Ring Boss, Inlet Connection Size #10, Outlet Connection Size #10, Pressure - Maximum 3,045 psi, Flow Rate - Maximum 3.5 gpm, Flow Rate - Minimum 0.86 gpm, Displacement 0.258 cc/rev, Speed - Maximum 3,000 RPM, Speed - Minimum 750 RPM, Body Material Aluminum, Inlet Connection Dash Size 14, Outlet Connection Dash Size 14, Overall Height 3.1 in, Overall Length 11.1 in, Outlet Pressure - Maximum 3,045 psi
