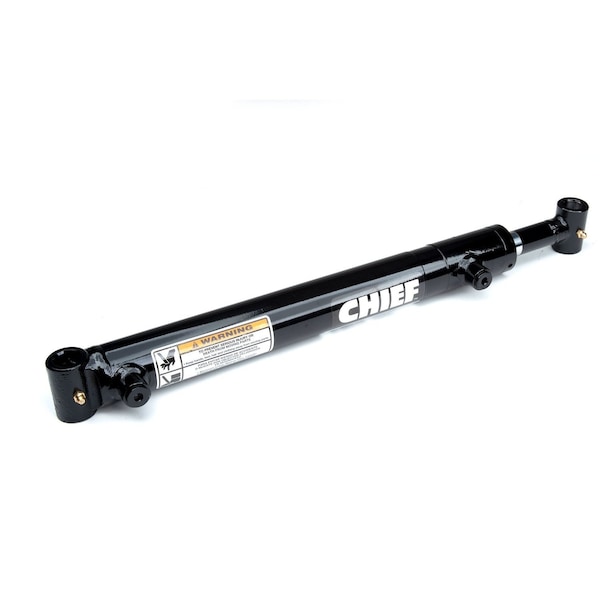

Welded Hydraulic Cylinder
- Mfr # 288602
- Zoro # G4734919
product price:Â
$
151.99
/ea
Free Shipping & Returns
Zoro's best price: not eligible for any other offers or promotions
Key Features
Bore Dia.
1.5 in
Stroke Length
16 in
Max. Pressure
3000
Retracted Length
24 in
Rod Dia.
1 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 288602
- Zoro #
- G4734919
- UPC #
- 615986027202
- Country of Origin
- China
- Item
- Hydraulic Cylinder,1.5" Bore x16" Stroke
- Max. Pressure
- 3000
- Column Load
- 5300 lbs
- Max Pressure
- 3000
- Max Pressure PSI
- 3000
- Extended
- 40 in
- Max. Push Capacity
- 5300 lbs
- Weight
- 12.13 lbs.
Description
Welded Hydraulic Cylinder, Double Acting, Bore Dia. 1.5 in, Stroke Length 16 in, Rod Dia. 1 in, Retracted Length 24 in, Extended Length 40 in, Port Size #6 SAE, Max. Pressure 3,000 psi, Ductile Iron Piston Material, Chrome Plated Piston Rod Material, Buna O-Ring Ring Material, Honed Steel Tubes, Polyurethane U-Cup Rod Seal Type, Hallite 755 Piston Seal Type, Pin Dia. 3/4 in
