Chief

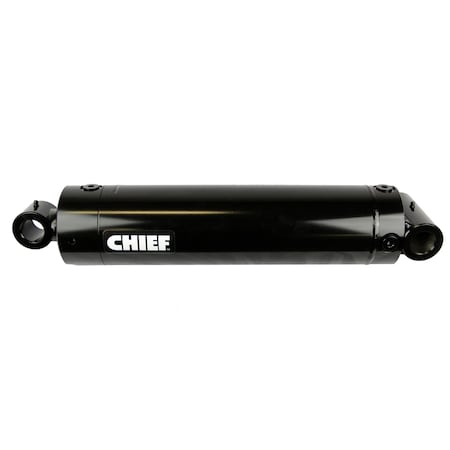

WX Welded Hydraulic Cylinder: 5 Bore x 24 Stroke - 2.5 Rod

Hover or click to zoom Tap to zoom
Key Features
  • Promotion Restriction: Not eligible for promotion
  • Item: Hydraulic Cylinder
  • Bore Dia.: 5 in
  • Stroke Length: 24 in
  • Max. Pressure: 3000
  • Retracted Length: 36 in
  • Rod Dia.: 2.5 in
  • Port Size: SAE 12
See full product details
$916.54
Join our email list for 10% off your first order
For 10% Off Your First Order
Free Shipping on $50+ Orders
No-Hassle, 30-Day Returns 30-Day Returns
125 U.S.-Based Customer Service Agents 125 U.S.-Based Customer Service Agents

Specifications

Dimensions

Stroke Length 24 in
Retracted Length 36 in
Port Size SAE 12
Extended Length 60 in
Pin Diameter 1.5 in

Details

Promotion Restriction Not eligible for promotion
Item Hydraulic Cylinder
Bore Dia. 5 in
Max. Pressure 3000
Rod Dia. 2.5 in
Column Load 58900 lbs
Extended 60 in
Max Pressure PSI 3000
Retracted 36 in
Weight 122 lbs.

Description

This 5 in bore x 24 in stroke Chief WX Welded Hydraulic Cylinder features an adjustable 360 deg rotating gland and is widely used in applications where the same size cylinder can be used in a variety of directions and port positions.
