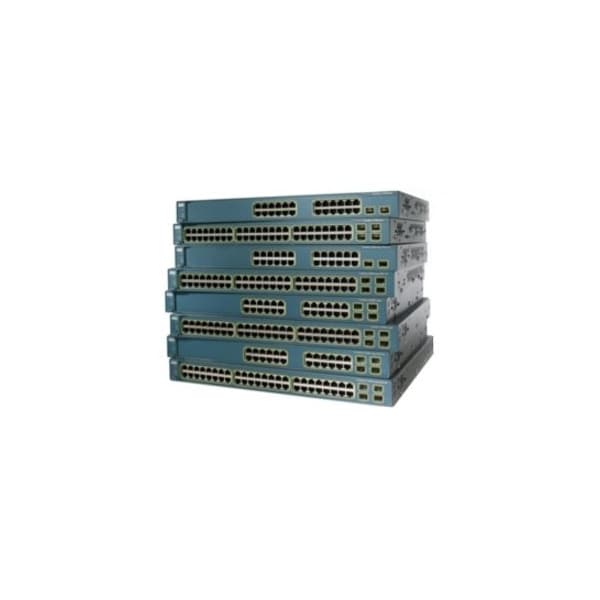

Cisco Catalyst 3560 Gigabit Ethernet Switch - 24 x 10/100/1000Base-T (Discontinued)

IEEE:IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1D Spanning Tree Protocol, IEEE 802.1p CoS Prioritization, IEEE 802.1Q VLAN, IEEE 802.3 10BASE-T specification, IEEE 802.3u 100BASE-TX specification, IEEE 802.3ab 1000BASE-T specification, IEEE 802.3z 1000BASE-X specificationSafety Certifications:UL to UL 60950, Third Edition, C-UL to CAN/CSA C22.2 No. 60950-00, Third Edition, TUV/GS to EN 60950:2000, CB to IEC 60950 with all country deviations, NOM to NOM-019-SCFI, CE MarkingElectromagnetic Emissions Certifications:FCC Part 15 Class A, EN 55022: 1998-(CISPR22), EN 55024: 1998-(CISPR24), VCCI Class A, AS/NZS 3548 Class A, CE, CNS 13438 Class A, MICMIB:BRIDGE-MIB, CISCO-CDP-MIB, CISCO-CLUSTER-MIB, CISCO-CONFIG-MAN-MIB, CISCO-ENTITY-FRU-CONTROL-MIB, CISCO-ENVMON-MIB, CISCO-FLASH-MIB, CISCO-FTP-CLIENT-MIB, CISCO-HSRP-MIB, CISCO-HSRP-EXT-MIB, CISCO-IGMP-FILTER-MIB, CISCO-IMAGE-MIB, CISCO-IP-STAT-MIB, CISCO-L2L3-INTERFACE-CONFIG-MIB, CISCO-MAC-NOTIFICATION-MIB, CISCO-MEMORY-POOL-MIB, CISCO-PAGP-MIB, CISCO-PING-MIB, CISCO-PROCESS-MIB, CISCO-RTTMON-MIB, CISCO-STP-EXTENSIONS-MIB, CISCO-SYSLOG-MIB, CISCO-TCP-MIB, CISCO-VLAN-IFTABLE-RELATIONSHIP-MIB, CISCO-VLAN-MEMBERSHIP-MIB, CISCO-VTP-MIB, ENTITY-MIB, ETHERLIKE-MIB, IF-MIB, IGMP-MIB, IPMROUTE-MIB, OLD-CISCO-CHASSIS-MIB, OLD-CISCO-FLASH-MIB, OLD-CISCO-INTERFACES-MIB, OLD-CISCO-IP-MIB, OLD-CISCO-SYS-MIB, OLD-CISCO-TCP-MIB, OLD-CISCO-TS-MIB, OSPF-MIB (RFC 1253), PIM-MIB, RFC1213-MIB, RFC1253-MIB, RMON-MIB, RMON2-MIB, SNMP-FRAMEWORK-MIB, SNMP-MPD-MIB, SNMP-NOTIFICATION-MIB, SNMP-TARGET-MIB, SNMPv2-MIB, TCP-MIB, UDP-MIB

SNMPv1, SNMPv2c, and SNMPv3, policy management, Command-line interface (CLI), Resource Manager Essentials, Web-based management, Cisco Network Assistant Software, Four thousand VLAN IDs are supported, Management console port: RJ-45-to-DB-9 cable for PC connections, Service Assurance Agent (SAA) support facilitates service-level management throughout the LAN., Up to 1024 VLANs per switch or stack and up to 128 spanning-tree instances per switch are supported, Embedded Remote Monitoring (RMON) software agent supports four RMON groups (history, statistics, alarms, and events)., VLAN trunks can be created from any port, using either standards-based 802.1Q tagging or the Cisco Inter-Switch Link (ISL) VLAN architecture., Remote SPAN (RSPAN) allows administrators to remotely monitor ports in a Layer 2 switch network from any other switch in the same network.
