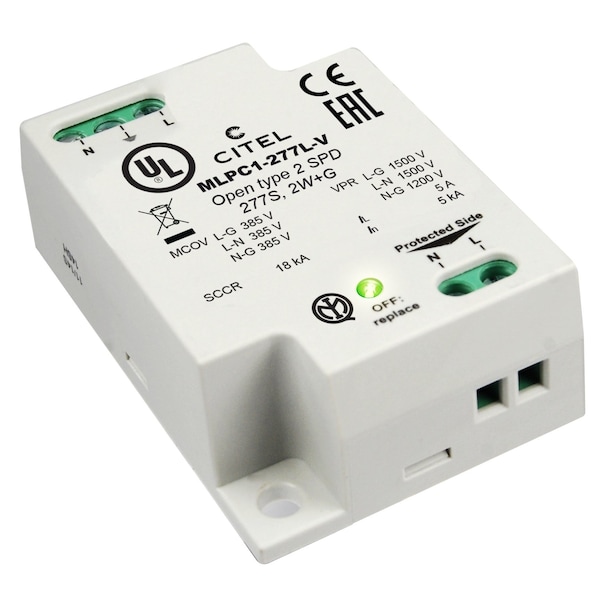

Surge Protection Device, 1 Phase, 277V, 2 Poles, 2 Wires
Mfr # MLPC1-277L-V-Ex
Zoro # G309227419
product price: $154.99
/ea
Free Shipping & Returns
Key Features
Mounting Style
Flange
Phase
1
Voltage
277V
Number of Poles
2
Voltage Protection Rating
1500V/1500V/1200V
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
MLPC1-277L-V-Ex
Zoro #
G309227419
UPC #
-
Country of Origin
China
Dimensions
Length
59 mm
Depth
17 mm
Width
40 mm
Details
Item
Surge Protection Device
Mounting Style
Flange
Phase
1
Voltage
277V
Number of Poles
2
Voltage Protection Rating
1500V/1500V/1200V
Number of Wires
2 Wires
Modes of Protection
L-L, L-G, L-N, N-G
Max. Surge Current per Mode
10kA
Nominal Discharge Current
5 kA
Short Circuit Current Rating
18kA
Max. Continuing Operating Voltage
385/385/255V
Enclosure NEMA Rating
NEMA 2
IP Rating
IP20
Enclosure Material
Thermoplastic
