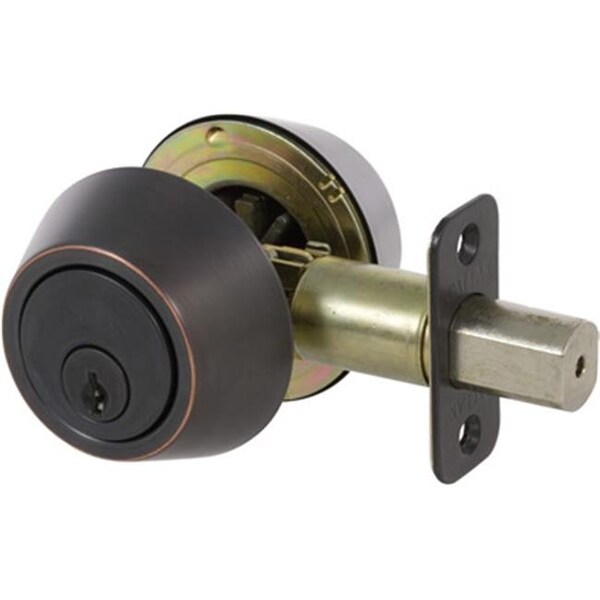

Door Knobs, Double Cylinder Deadbolt Grade 3, Edged Bronze

Double cylinder door handle sets and deadbolts are keyed on both the interior and the exterior, requiring a key to lock or unlock from either side. In some locations, Double Cylinder locks will not pass code due to their hindrance of quick exit during a fire, and as such are not commonly used for residential locations.

• Combination Screws that Suit both Wood or Metal Door Mounting.
• 200,000 Cycle Count.
• Work's Well with both Traditional and Functional Decor.
• Item Weight - 1.8 lbs.

• Door Prep - Entry Cross bore - 2-1/8 in., Edge bore - 1 in., Latch face - 1 x 2-1/4 in.
• Back set - Fits 2-3/8 in. and 2-3/4 in.
• Door Thickness - 1-3/8 in. ~ 1-3/4 in. door standard.
• Latches - Deadbolt - 2-3/8 in. & 2-3/4 in. adjustable (9092), Faceplate - 1 x 2-1/4 in. round corner, Bolt - 1 in. throw with hardened steel rod.
• Strikes - 2-1/4 in. full lip round corner (9113 & 9117).
• Door Thickness - 1-3/8 in. ~ 1-3/4 in. door standard.
• Wood Screws - Combination screws that suit both wood or metal door mounting.
• Cylinder - KW1 5-pin standard. SC1 5-pin optional Deadbolts packed KA5.
• Door Handing - Not Required.
• Finish - Edged Bronze.
