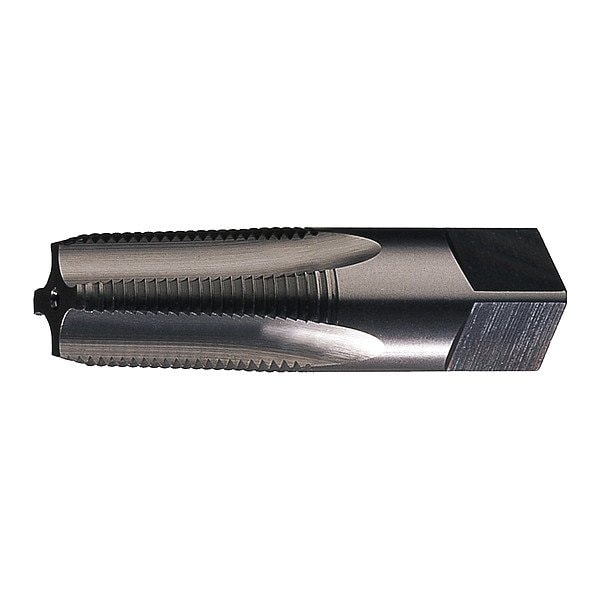

1/16-27NPT HSS 4-Flute General Purpose Taper Pipe Tap Cle-Line 0462 Bright

  • Mfr # C29000

  • Zoro # G909203592

product price:  $23.49
/ea

Key Features

Tap Chamfer
Semi-Bottoming
Number of Flutes
4
Thread Length
11/16 in
Thread Direction
Right Hand
Overall Length
2 1/8 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
C29000
Zoro #
G909203592
UPC #
662355007563
Country of Origin
United States

Dimensions

Thread Length
11/16 in
Overall Length
2 1/8 in
Shank Dia.
0.3125 in
75% Thread Drill Size
C
Square Size
0.3750 in
Shank Length
0.3750 in
Thread Size
1/16"-27
Tap Length Standard
USCTI
Shank Diameter
5/16 in
Square Length
0.38 in
Square Width
0.38 in

Details

Item
Taper Pipe Tap
Tap Chamfer
Semi-Bottoming
Number of Flutes
4
Thread Direction
Right Hand
Tap Finish
Bright (Uncoated)
Tap Material
High Speed Steel
Tap Style
Taper Pipe
Measurement System
Decimal Inch
Primary Material Application ISO Code
K, N, P
Thread Standard
NPT
Spiral Direction
Right Hand
Tap Shank Standard
USCTI
Interrupted Thread
No
Features
Thread Cutting
Shank Type - Machining
Straight
Max. Projection
0.3120 in
Threads per Inch
27
Primary Material Application
Aluminum, Brass, Bronze, Cast Iron, Copper, Magnesium, Steel
Flute Type
Straight
Shank Type
Square
Standards
USCTI Table 311
Tap Application
Blind Hole, Through Hole
Maximum Projection
5/16 in
List Number
0462
Impact Rated
Not Impact Rated
Hook
Medium

Description

Taper Pipe Tap, Thread Size 1/16 In.-27, NPT, Overall Length 2 1/8 in, High Speed Steel, Bright (Uncoated), Right Hand, Thread Length 11/16 in, 75 Percent Thread Drill Size C, Thread Limit Not Applicable, Class of Fit Not Applicable, Number of Flutes 4
