  11. 135 Degree Aircraft Extension Drill Cle-Line 1805 Steam Oxide HSS RHS/RHC 1/4-E

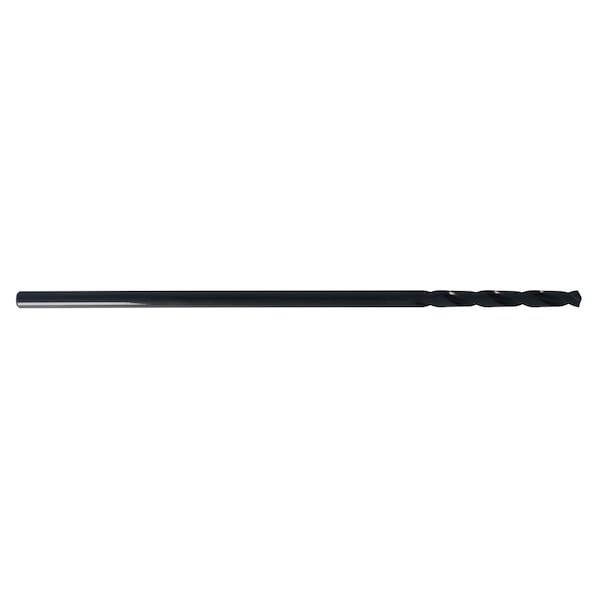

Cle-Line 135 Degree Aircraft Extension Drill Cle-Line 1805 Steam Oxide HSS RHS/RHC 1/4-E C23733 - main

135 Degree Aircraft Extension Drill Cle-Line 1805 Steam Oxide HSS RHS/RHC 1/4-E

  • Mfr # C23733

  • Zoro # G4948819

product price: $10.29
/ea

Key Features

Overall Length
12 in
Drill Bit Point Angle
135 Degrees
Drill Bit Size
1/4 in
Number of Flutes
2
Shank Dia.
1/4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
C23733
Zoro #
G4948819
UPC #
697334237334
Country of Origin
United States

Dimensions

Overall Length
12 in
Drill Bit Size
1/4 in
Shank Dia.
1/4 in
Depth:Dia. Ratio
4xD
Flute Length
2 3/4 in
Shank Length
9 1/4 in
Drill Diameter Tolerance
+0.0000 in/-0.0007 in
Drill Point Length
0.0518 in
Drill Length Class
Aircraft Extension
Maximum Drilling Depth
1 in

Details

Item
Aircraft Extension Drill
Drill Bit Point Angle
135 Degrees
Number of Flutes
2
Material - Machining
High Speed Steel
Cutting Direction
Right Hand
Finish - Machining
Black Oxide
Shank Type - Machining
Straight
Standards
ASME B94.11M
Flute Type
Spiral
Decimal Equivalent
0.2500
List Number
1805
Spiral Direction
Right Hand
Primary Material Application ISO Code
P
Measurement System
Fractional Inch
Primary Material Application
Steel
Helix Angle
21 Degrees to 34 Degrees
Coolant Fed
Non-Coolant Through
Drill Bit Point Type
Split Point
Series
1805
Material Grade - Machining
Heavy Duty
Secondary Material Application ISO Code
N
Helix Angle - Maximum
34 Degrees
Secondary Material Application
Aluminum, Brass, Bronze, Copper
Helix Angle - Minimum
21 Degrees

Description

Aircraft Extension Drill, Drill Bit Size 1/4 in, Drill Bit Point Angle 135 Degrees , Split Point, High Speed Steel, Black Oxide, 21 Degrees to 34 Degrees , Material Grade - Machining Heavy Duty, Maximum Drilling Depth 1 in, Fractional Inch, 4xD
