  11. 135 Degree Double End Drill Cle-Line 1815 Steam Oxide HSS RHS/RHC 9/64

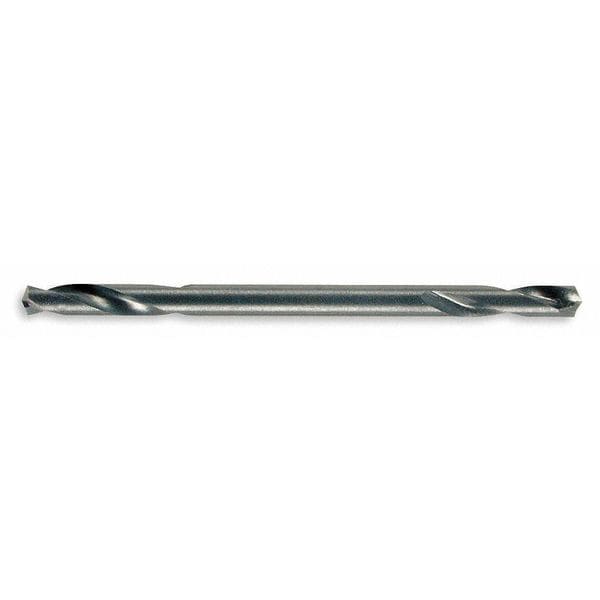

Cle-Line 135 Degree Double End Drill Cle-Line 1815 Steam Oxide HSS RHS/RHC 9/64 C17618 - main

135 Degree Double End Drill Cle-Line 1815 Steam Oxide HSS RHS/RHC 9/64

  • Mfr # C17618

  • Zoro # G2863007

product price: $2.49
/ea

Key Features

Depth:Dia. Ratio
4xD
Type
Standard
Overall Length
1-1/32 in
Flute Length
1/2 in
Drill Bit Point Angle
135 Degrees
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
C17618
Zoro #
G2863007
UPC #
697334176183
Country of Origin
United States

Dimensions

Depth:Dia. Ratio
4xD
Overall Length
1-1/32 in
Flute Length
1/2 in
Drill Bit Size
9/64 in
Fractional Size (In.)
9/64
Diameter
0.140625
Shank Length
0.4957
Shank Size
0.1406
Maximum Drilling Depth
9/16 in
Shank Dia.
9/64 in

Details

Type
Standard
Drill Bit Point Angle
135 Degrees
Drill Bit Grouping
Drill Bit
Number of Pieces
1
Item
Double End Drill Bit
Decimal Equivalent
0.1406
Application
For Sheet Metal and Other Thin Metals
Cutting Direction
Right Hand
Measurement System
Fractional Inch
Drill Style
Double End Drill
Flute Type
Spiral
Finish - Machining
Black Oxide
Number of Flutes
2
Primary Material Application ISO Code
P
Primary Material Application
Steel
Helix Angle
28 Degrees
Shank Type - Machining
Straight
Material - Machining
High Speed Steel
Series
1815
Spiral Direction
Right Hand
Drill Bit Point Type
Split Point
Standards
Not Rated
Material Grade - Machining
Heavy Duty
Secondary Material Application
Cast Iron

Description

Double End Drill Bit, 9/64 in Drill Bit Size, 135 Degrees Drill Bit Point Angle, Drill Bit Point Type Split Point, Black Oxide, High Speed Steel, Decimal Equivalent 0.1406, Fractional Inch, 14 mm Flute Length, 9/64 in Shank Dia.
