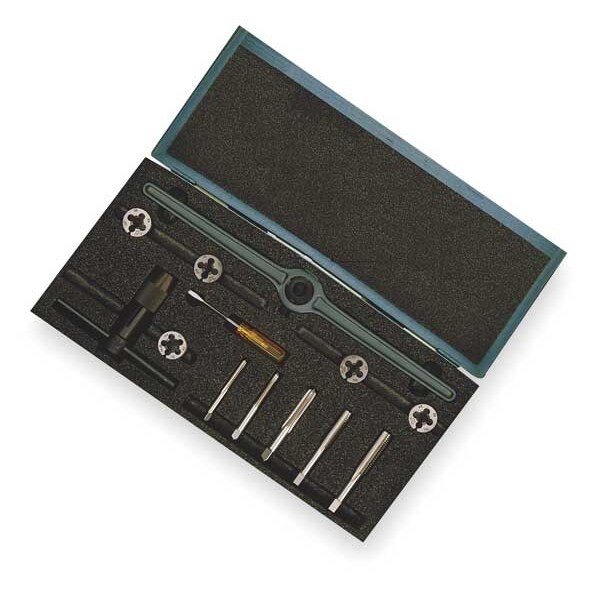

13PC 1/4-20 - 1/2-13 UNC HSS Plug Hand Tap and Carbon Round Adjustable Die Set Cle-Line

  • Mfr # C00518

  • Zoro # G0738647

product price:
$
362.99
/ea
Free Shipping & Returns

Key Features

Tap Material
High Speed Steel
Tap Finish
Bright (Uncoated)
Thread Direction
Right Hand
Number of Flutes
4
Number of Pieces
13
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
C00518
Zoro #
G0738647
UPC #
697334005186
Country of Origin
United States

Dimensions

Sizes Included
1/4-20, 5/16-18, 3/8-16, 7/16-14, 1/2-13
Size/Range
1/4 to 1/2"
Cutting Sizes
5
Die Thread Sizes Included
1/2"-13 NC, 1/4"-20 NC, 3/8"-16 NC, 5/16"-18 NC, 7/16"-14 NC
Min. Tap Thread Size
1/4"-20
Max. Die Thread Size
1/2"-13
Tap Overall Length
Table 302
Tap Shank Dia.
Table 302
65% Thread Drill Size
#5, 11.00mm, 17/64 in, P, V
Max. Tap Thread Size
1/2"-13
Dimensions Standard
Fractional Inch
Tap Sizes Included
1/2 in -13 NC, 1/4 in -20 NC, 3/8 in -16 NC, 5/16 in -18 NC, 7/16 in -14 NC
Min. Bore Dia.
1/4 in -20 NC
55% Thread Drill Size
#3, 11.30mm, 8.40mm, I, W
Thread Sizes Included
1/2"-13, 1/4"-20, 3/8"-16, 5/16"-18, 7/16"-14
75% Thread Drill Size
#7, 27/64 in, 5/16 in, F, U

Details

Item
Tap and Die Set
Tap Material
High Speed Steel
Tap Finish
Bright (Uncoated)
Thread Direction
Right Hand
Number of Flutes
4
Number of Pieces
13
Material
High Speed Steel
Left/Right Hand
Right Hand
Thread Type
UNC
Includes
Tap, Die and Collet for Each Size, Steel Case with Foam Liner
Finish
Mill
Standards
ANSI
Die Type
Adjustable
Tap Wrench Number
T10
SAE or Metric
SAE
Features
General Purpose Applications
Threads per Inch
13, 14, 16, 18, 20
Tap Series
411
Case Type
Metal
Die Material Grade
Carbon Steel
Die Finish
Bright (Uncoated)
Finish - Machining
Bright (Uncoated)
Class of Fit
2B
Material - Machining
High Speed Steel
Tap Type
Hand Tap
Primary Material Application ISO Code
H, K, M, N, P, S
Extended Shank
No
Helix Angle
0 Degrees
Number of Dies in Set
5
Primary Material Application
All Materials
Thread Standard
UNC
Secondary Material Application ISO Code
M
Spiral Direction
Neutral
Number Of Taps
5
Tap Shank Standard
Table 302
Tap Chamfer
Plug
Extension Tap
No
Coolant Fed
Non-Coolant Through
Extended Neck
No
Die Series
0610
Die Shape
Round
Die Material
High Speed Steel
Thread Limit
H3
Secondary Material Application
Stainless Steel
Tap Material Grade
M2
Powdered Metal Base Material
No
Measurement System
Fractional Inch
Type
Fractional
Number of Dies Included
5
Tap Style
Straight Flute

Description

Tap and Die Set, Number of Pieces 13, Die Shape Round, Tap Type Hand Tap, Die Material Carbon Steel, Thread Sizes Included 1/2 In.-13, 1/4 In.-20, 3/8 In.-16, 5/16 In.-18, 7/16 In.-14, Die Thread Sizes Included 1/2 In.-13 NC, 1/4 In.-20 NC, 3/8 In.-16 NC, 5/16 In.-18 NC, 7/16 In.-14 NC, Number Of Taps 5, Number of Dies in Set 5, Thread Standard UNC, Tap Shank Standard Table 302
