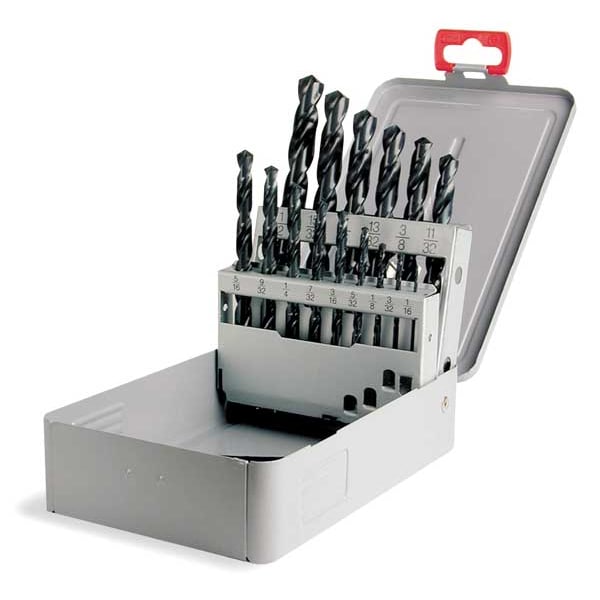

15PC 118 Degree General Purpose Jobber Lngth Drill Set Cle-Line 1899 Steam Oxide HSS RHS/RHC 1/16-1/2x1/32

  • Mfr # C21109

  • Zoro # G1245264


product price:  $56.15
/ea

Key Features

Number of Pieces
15
Cutting Direction
Right Hand
Drill Bit Point Angle
118 Degrees
Drill Bit Material
High Speed Steel
Includes
Metal Drill Index
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
C21109
Zoro #
G1245264
UPC #
697334211099
Country of Origin
United States

Dimensions

Drill Bit Dimension Type
Fractional Inch
Depth:Dia. Ratio
4xD
Drill Bit Size
1/16 in to 1/2 in by 32nds
Sizes Included
1/16", 3/32", 1/8", 5/32", 3/16", 7/32", 1/4", 9/32", 5/16", 11/32", 3/8", 13/32", 7/16", 15/32", 1/2"
Shank Dia.
1/6 in
Depth x Dia. Ratio
4xD
Size Range
1/16"-1/2"
Smallest Drill Bit Size
1/16 in
Largest Drill Bit Size
1/2 in
Drill Bit Sizes Included
1/16 in, 1/2 in, 1/4 in, 1/8 in, 11/32 in, 13/32 in, 15/32 in, 3/16 in, 3/32 in, 3/8 in, 5/16 in, 5/32 in, 7/16 in, 7/32 in
Drill Length Class
Jobber-Length
Overall Length
1 7/8 in, 2 1/4 in, 2 3/4 in, 3 1/8 in, 3 1/2 in, 3 3/4 in, 4 in, 4 1/4 in, 4 1/2 in, 4 3/4 in, 5 in, 5 1/4 in, 5 1/2 in, 5 3/4 in, 6 in

Details

Item
Jobber Length Drill Bit Set
Number of Pieces
15
Cutting Direction
Right Hand
Drill Bit Point Angle
118 Degrees
Drill Bit Material
High Speed Steel
Includes
Metal Drill Index
List Number
1899
Point Type
Conventional Point
Drill Bit Grouping
Drill Bit Set
Standards
ASME B94.11M-1993, DIN 338
Measurement System
Fractional Inch
Drill Style
Jobber Drill
Flute Type
Spiral
Shank Type
Straight
Left/Right Hand
Right
Number of Drill Bits
15
Material Grade - Machining
General Purpose
Aircraft Drill
No
Material - Machining
High Speed Steel
Primary Material Application
Cast Iron, Steel
Finish - Machining
Black Oxide
Shank Type - Machining
Straight
Coolant Fed
Non-Coolant Through
Drill Bit Point Type
Conventional Point
Drill Bit Case Type
Metal Index
Spiral Direction
Right Hand
Primary Material Application ISO Code
K, P
Number of Flutes
2
Helix Angle - Maximum
34 Degrees
Helix Angle - Minimum
21 Degrees

Description

Jobber Length Drill Bit Set, Number of Drill Bits 15, Drill Bit Point Angle 118 Degrees , Material - Machining High Speed Steel, Finish - Machining Black Oxide
