Shop CLE-LINE

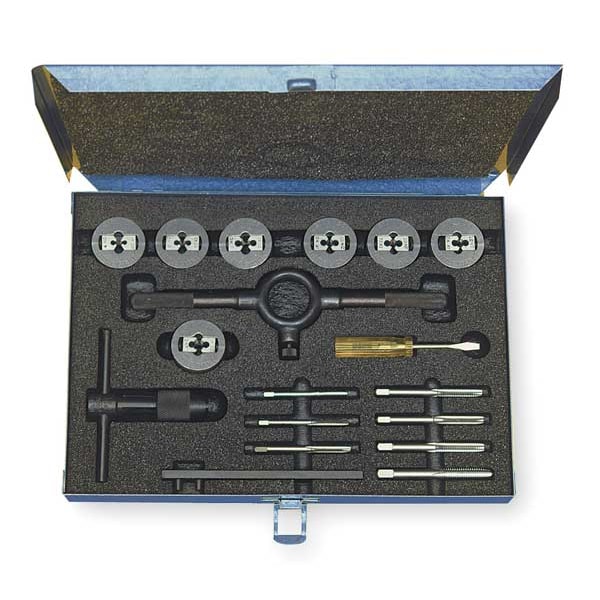

17PC No 4-40 - 1/4-20 UNC HSS Plug Hand Tap and Two-Piece Die Set Cle-line 055

  • Mfr # C00609
  • Zoro # G1765741
product price:
$
1,035.99
/ea
Free Shipping & Returns

Key Features

Sizes Included
#4-40, #6-32, #8-32, #10-32, #10-24, #12-24, 1/4"-20
Number of Pieces
18
Material
High Speed Steel
Thread Direction
Right Hand
Type
Fractional
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
C00609
Zoro #
G1765741
UPC #
697334006091
Country of Origin
United States

Dimensions

Sizes Included
#4-40, #6-32, #8-32, #10-32, #10-24, #12-24, 1/4"-20
Cutting Sizes
7
Size Range
#4 to 1/4"
Tap Dimension Type
Inch, Machine
Size/Range
#4 to 1/4"
Min. Bore Dia.
#4-40 NC
Die Thread Sizes Included
#10-24, #10-32, #12-24, #4-40, #6-32, #8-32, 1/4"-20
55% Thread Drill Size
#3, #32, 3.60mm, 3/32 in
Tap Overall Length
Table 302
Tap Shank Dia.
Table 302
Max. Die Thread Size
1/4"-20
Dimensions Standard
Fractional Inch
Tap Sizes Included
#10-24, #10-32, #12-24, #4-40, #6-32, #8-32, 1/4"-20
Min. Tap Thread Size
#4-40
Thread Sizes Included
#10-24, #10-32, #12-24, #4-40, #6-32, #8-32, 1/4"-20
Max. Tap Thread Size
1/4"-20
65% Thread Drill Size
#34, #5, 2.30mm, 3.50mm
75% Thread Drill Size
#36, #7, 2.20mm, 3.40mm

Details

Item
Tap and Die Set
Number of Pieces
18
Material
High Speed Steel
Thread Direction
Right Hand
Type
Fractional
Tap Chamfer
Plug
Tap Wrench Number
A1, T9
Thread Type
UNC, UNF
Finish
Mill
SAE or Metric
SAE
Die Material
High Speed Steel
Die Shape
Round Fixed
Die Type
2-Piece
Standards
ANSI
Includes
Tap, Die and Collet for Each Size, Plastic Case
Left/Right Hand
Right Hand
Tap Material
High Speed Steel
Number of Flutes
3, 4
Tap Finish
Bright (Uncoated)
Features
Self Alignment
Tap Series
HTGP
Die Material Grade
Carbon Steel
Tap Shank Standard
Table 302
Tap Material Grade
M2
Primary Material Application ISO Code
H, K, M, N, P, S
Tap Type
Hand Tap
Number of Dies in Set
7
Threads per Inch
20, 24, 32, 40
Finish - Machining
Bright (Uncoated)
Extended Neck
No
Helix Angle
0 Degrees
Spiral Direction
Neutral
Primary Material Application
All Materials
Secondary Material Application ISO Code
M
Extension Tap
No
Powdered Metal Base Material
No
Secondary Material Application
Stainless Steel
Thread Standard
UNC, UNF
Case Type
Metal
Measurement System
Fractional Inch
Number Of Taps
7
Class of Fit
2B
Die Finish
Bright (Uncoated)
Coolant Fed
Non-Coolant Through
Thread Limit
H2, H3
Material - Machining
High Speed Steel
Extended Shank
No
Die Series
0550
Tap Style
Straight Flute
Number of Dies Included
7

Description

Tap and Die Set, Number of Pieces 18, Die Shape Round Fixed, Tap Type Hand Tap, Die Material High Speed Steel, Thread Sizes Included #10-24, #10-32, #12-24, #4-40, #6-32, #8-32, 1/4 In.-20, Die Thread Sizes Included #10-24, #10-32, #12-24, #4-40, #6-32, #8-32, 1/4 In.-20, Number Of Taps 7, Number of Dies in Set 7, Thread Standard UNC, UNF, Tap Shank Standard Table 302
