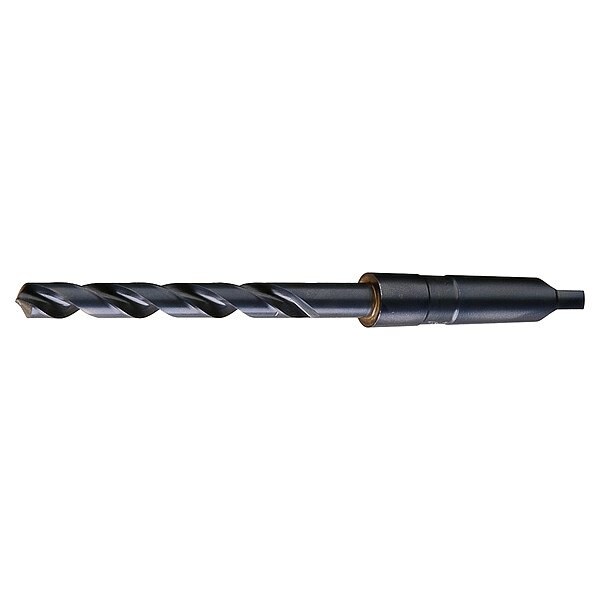

33.00mm No 4MT HSS General Purpose Taper Shank Drill Cle-Line Import 1682 RHS/RHC
- Mfr # C21975
- Zoro # G009197234
product price:Â
$
82.65
/ea
Key Features
Drill Bit Size
33 mm
Overall Length
14 1/4 in
Number of Flutes
2
Material - Machining
High Speed Steel
Finish - Machining
Black Oxide
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- C21975
- Zoro #
- G009197234
- UPC #
- 662355014837
- Country of Origin
- China
- Item
- Taper Shank Drill Bit
- Number of Flutes
- 2
- Material - Machining
- High Speed Steel
- Finish - Machining
- Black Oxide
- Drill Bit Point Angle
- 118 Degrees
- Cutting Direction
- Right Hand
- Shank Type - Machining
- Morse Taper
- Measurement System
- Metric
- List Number
- 1682
- Standards
- ASME B94.11M
- Decimal Equivalent
- 1.2992 in
- Flute Type
- Spiral
- Spiral Direction
- Right Hand
- Primary Material Application
- Cast Iron, Steel
- Helix Angle
- 21 Degrees to 34 Degrees
- Coolant Fed
- Non-Coolant Through
- Drill Bit Point Type
- Radial Point
- Taper Shank Description
- Morse Taper
- Material Grade - Machining
- General Purpose
- Primary Material Application ISO Code
- K, P
- Helix Angle - Minimum
- 30 Degrees
- Helix Angle - Maximum
- 34 Degrees
- Secondary Material Application ISO Code
- N
- Secondary Material Application
- Aluminum, Brass, Bronze, Copper
Dimensions
- Drill Bit Size
- 33 mm
- Overall Length
- 14 1/4 in
- Flute Length
- 8 5/8 in
- Maximum Drilling Depth
- 219.07 mm
- Depth:Dia. Ratio
- 4xD
- Drill Diameter Tolerance
- +0.0000 in/-0.0015 in
- Taper Shank Size
- MT4
- Wire Rope Length
- 14 1/4 in
- Length
- 14 1/4 in
Description
Taper Shank Drill Bit, Drill Bit Size 33 mm, Drill Bit Point Angle 118 Degrees , Radial Point, High Speed Steel, Black Oxide
