Shop CLE-LINE

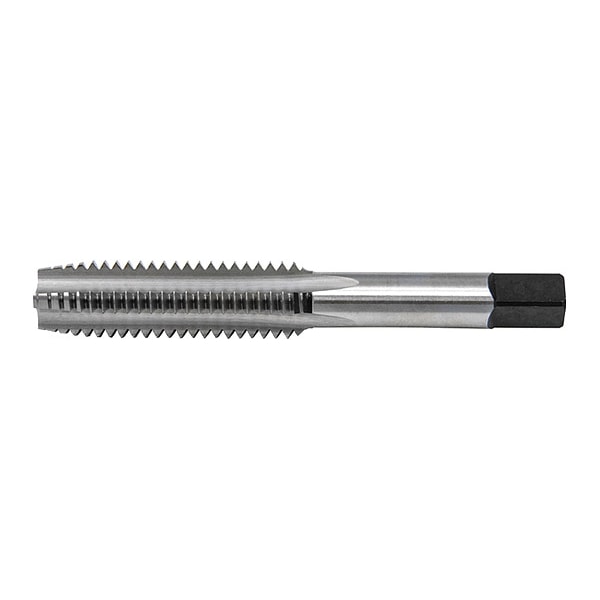

Straight Flute Hand Tap, Plug, 2 Flutes

  • Mfr # C62002

  • Zoro # G4951600

product price:  $7.75
/ea

Key Features

Shank Dia.
0.141"
Tap Chamfer
Plug
Tap Dimension Type
Inch
Tap Material
High Speed Steel
Tap Style
Straight Flute (Hand)
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
C62002
Zoro #
G4951600
UPC #
697334620020
Country of Origin
United States

Dimensions

Shank Dia.
0.141"
Tap Dimension Type
Inch
Overall Length
1-7/8"
Pitch Diameter Limit
H2
Tap Thread Size
#4-40
Thread Length
9/16"
Shank Length
1 5/16 in
75% Thread Drill Size
2.20 mm
Tap Length Standard
USCTI
Thread Size
#4-40
Square Size
0.1100 in
65% Thread Drill Size
2.30 mm
55% Thread Drill Size
3/32 in
Square Length
0.11 in
Shank Diameter
0.141 in
Square Width
0.11 in

Details

Item
Straight Flute Hand Tap
Tap Chamfer
Plug
Tap Material
High Speed Steel
Tap Style
Straight Flute (Hand)
Number of Flutes
2
Tap Grouping
Tap
Thread Direction
Right Hand
Number of Pieces
1
Tap Thread Type
UNC
Standards
USCTI Table 302
Tap Finish
Bright (Uncoated)
List Number
1870TN
Cutting Direction - Machining
Right Hand
Series
402
Measurement System
Pipe
Threads per Inch
40
Thread Limit
H2
Primary Material Application ISO Code
K, N, P
Extended Neck
Yes
Spiral Direction
Neutral
Tap Shank Standard
USCTI
Primary Material Application
Aluminum, Brass, Bronze, Cast Iron, Copper, Steel
Shank Type - Machining
Straight
Thread Standard
UNC
Class of Fit
2B
Helix Angle
0 Degrees
Impact Rated
Not Impact Rated
Tap Application
Blind Hole, Through Hole
Shank Type
Square

Description

Straight Flute Tap, Thread Size #4-40, UNC, Plug, Overall Length 1 7/8 in, High Speed Steel, Bright (Uncoated), Right Hand, Thread Length 9/16 in, 75 Percent Thread Drill Size 2.20 mm, Thread Limit H2, Class of Fit 2B
