  9. Impact Wrench, 40.5 CFM, 1/4 in. NPT

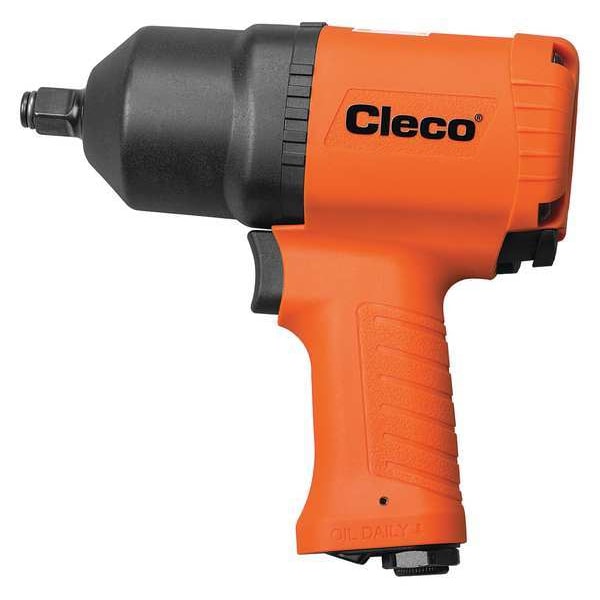

Cleco Impact Wrench, 40.5 CFM, 1/4 in. NPT CWC-500P - main

Impact Wrench, 40.5 CFM, 1/4 in. NPT

  • Mfr # CWC-500P

  • Zoro # G9751926

product price: $509.99
/ea
Free Shipping & Returns

Key Features

Square Drive Size
1/2"
Free Speed
8,000 RPM
Air Inlet
1/4 in NPT
Handle Type
Pistol Grip
Blows per Minute
1250
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CWC-500P
Zoro #
G9751926
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

Square Drive Size
1/2"
Air Inlet Size - Air Tools
1/4" NPT
Drive Size - Air Tools
1/2" Square
Min. Hose Size
3/8 in
Overall Length
7 1/4 in
Drive Size
1/2 in Square

Details

Item
Impact Wrench
Free Speed
8,000 RPM
Air Inlet
1/4 in NPT
Handle Type
Pistol Grip
Blows per Minute
1250
Item - Air Impact Wrenches
Air Impact Wrench
CFM @ Full Load
40.5
Required Pressure
90 PSI
Retainer Type - Air Impacts
Pin
Blows per Minute - Air Tools
1250
Average CFM @ 15 Second Run Time
5.70
Torque Range
50 to 600 ft.-lb.
Anvil Type - Air Impacts
Standard
Housing Material
Composite
Handle Material
Composite
Duty Cycle - Air Tools
General Duty
Features
Variable speed trigger
Anvil
Standard
Body Style - Air Tools
Pistol
Max. Torque
800 ft.-lb.
Retainer Type
Pin Detent
Max. Bolt Capacity
9/16 in
Includes
Muffler Kit
Style
Pistol Grip
Duty
General
Tool Weight
4.4 lb
Fastening Torque
800 ft-lb
Air Pressure
90 psi
Impacts per Minute
1,250
Clutch Style
Twin Hammer
Tool Style
Full-Size
Exhaust Location
Bottom
Impact Sound Level
88 dB
Min. Air Pressure
70 psi
Number of Speed Settings
4
Built-In Light
No
Duty Rating
General Duty
Air Consumption
41 cfm
Breakaway Torque
1,180 ft-lb
Max. Air Pressure
90 psi
Impact Rated
Yes
Power Source
Air Powered
Vibration Level
13.5 m/sq sec
Drive Type
Standard

Description

Impact Wrench, Power Source Air Powered, Air Consumption 41 cfm, Air Inlet 1/4 in NPT, Air Pressure 90 psi, Max. Air Pressure 90 psi, Min. Air Pressure 70 psi, Min. Hose Size 3/8 in, Exhaust Location Bottom, Duty Rating General Duty, Breakaway Torque 1,180 ft-lb, Fastening Torque 800 ft-lb, Free Speed 8,000 RPM, Impact Rated Yes, Impact Sound Level 88 dB, Impacts per Minute 1,250, Number of Speed Settings 4, Max. Bolt Capacity 9/16 in, Drive Size 1/2 in Square, Drive Type Standard
