  11. 118 Degree Extra Length Drill Cleveland 950E Steam Oxide HSS RHS/RHC 1/4-E

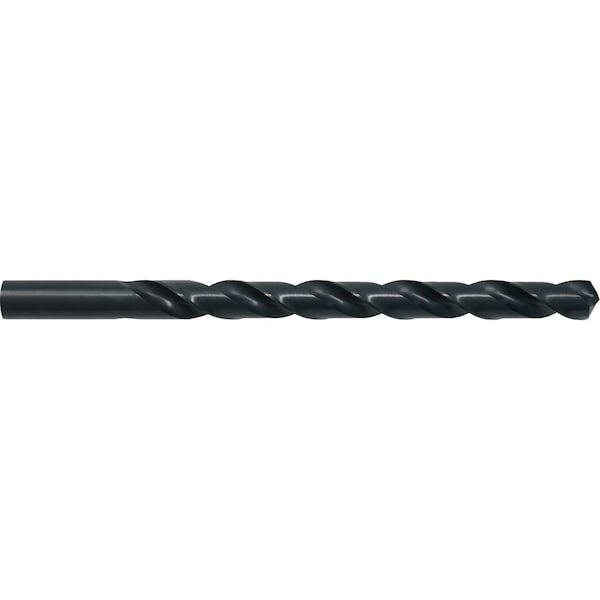

Cleveland 118 Degree Extra Length Drill Cleveland 950E Steam Oxide HSS RHS/RHC 1/4-E C09744 - main

118 Degree Extra Length Drill Cleveland 950E Steam Oxide HSS RHS/RHC 1/4-E

  • Mfr # C09744

  • Zoro # G2989907

product price: $38.19
/ea

Key Features

Drill Bit Size
1/4 in
Overall Length
12 in
Drill Bit Point Angle
118 Degrees
Material - Machining
High Speed Steel
Finish - Machining
Black Oxide
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
C09744
Zoro #
G2989907
UPC #
697334097440
Country of Origin
United States

Dimensions

Drill Bit Size
1/4 in
Overall Length
12 in
Shank Dia.
1/4 in
Flute Length
9 in
Depth:Dia. Ratio
4xD
Shank Size
1/4"
Drill Length Class
Extended-Length
Drill Diameter Tolerance
+0.0000 in/-0.0007 in
Shank Length
3 in
Maximum Drilling Depth
9 in
Drill Point Length
0.0751 in
Diameter
1/4 in

Details

Item
Extra Long Drill Bit
Drill Bit Point Angle
118 Degrees
Material - Machining
High Speed Steel
Finish - Machining
Black Oxide
Number of Flutes
2
Shank Type - Machining
Straight
Number of Pieces
0
Drill Bit Grouping
Drill Bit
Standards
ASME B94.11M
Flute Type
Spiral
Cutting Direction
Right Hand
Decimal Equivalent
0.2500
List Number
950E
Coolant Fed
Non-Coolant Through
Series
950E
Helix Angle
28 Degrees
Primary Material Application
Cast Iron, Steel
Secondary Material Application
Cast Iron
Drill Bit Point Type
Notched Point
Secondary Material Application ISO Code
K
Measurement System
Fractional Inch
Material Grade - Machining
General Purpose
Spiral Direction
Right Hand
Primary Material Application ISO Code
K, P
Helix Angle - Minimum
21 Degrees
Helix Angle - Maximum
34 Degrees

Description

Extra Long Drill Bit, Drill Bit Size 1/4 in, Drill Bit Point Angle 118 Degrees , Notched Point, High Speed Steel, Black Oxide, 28 Degrees , Material Grade - Machining General Purpose, Maximum Drilling Depth 9 in, Fractional Inch, 4xD
