Shop CLEVELAND

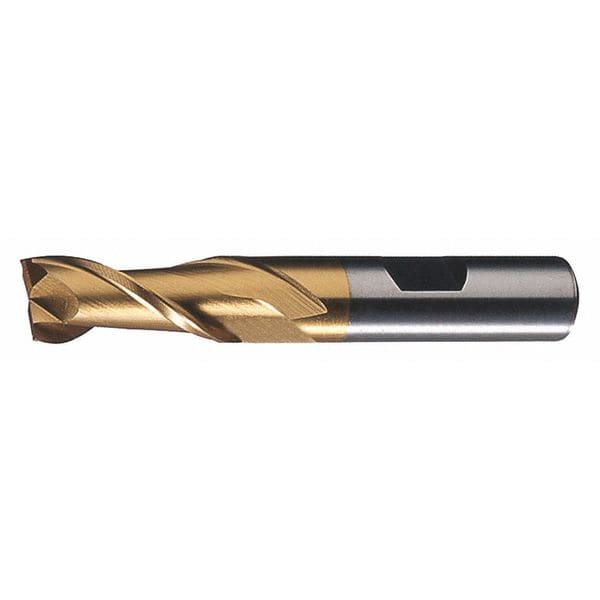

2-Flute PM+ HSS-E Square CC Single Finishing End Mill Cleveland PM-2-TN TiN 1"x1"x2"x4-1/2"

  • Mfr # C40821

  • Zoro # G2975128

product price:
$
163.99
/ea
Free Shipping & Returns

Key Features

Dimension Type
Fractional Inch
Milling Diameter
1"
End Mill Material
Powdered Metal
Number of Flutes
2
Length of Cut
2 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
C40821
Zoro #
G2975128
UPC #
697334408215
Country of Origin
United States

Dimensions

Dimension Type
Fractional Inch
Milling Diameter
1"
Length of Cut
2 in
Shank Dia.
1 in
Overall Length
4 1/2 in
Corner Radius
0.000 in
Milling Dia.
1 in
Wire Rope Length
4 1/2 in
Length
4 1/2 in

Details

End Mill Material
Powdered Metal
Number of Flutes
2
Single End/Double End
Single
End Mill Cutting Type
Center Cutting
Grade
Heavy Duty
Steel (P) Compatibility
Yes
Cast Iron (K) Compatibility
No
Stainless (M) Compatibility
Yes
End Mill Style
Square
Hardened (H) Compatibility
No
Finish
Tin
Super Alloy (S) Compatibility
Yes
End Mill Application
Finishing
List Number
PM-2-TN
Shank Type
Weldon
Helix Angle
37 Degrees
Non Ferrous (N) Compatibility
Yes
Cutting Direction
Right Hand
Item
Square End Mill
Cutting Direction - Machining
Right Hand
Material - Machining
Powdered Metal
Drilling Tool Configuration
Individual
Shank Type - Machining
Weldon Flat
Measurement System
Inch
Finish - Machining
TiN
Material Grade - Machining
Heavy Duty
Primary Material Application
Steel
Primary Material Application ISO Code
P
Chip-Breaker
Chip-Breaker Not Included
Flute Type
Spiral
Max. Helix Angle
37 Degrees
Flute Spacing
Fixed
Min. Helix Angle
37 Degrees
Secondary Material Application ISO Code
M, S
Coolant Fed
Non-Coolant Through
Secondary Material Application
Stainless Steel, Titanium

Description

Square End Mill, 1 in Milling Dia., Powdered Metal, TiN, Non-Coolant Through, Weldon Flat, Length of Cut 2 in, Overall Length 4 1/2 in, Shank Dia. 1 in, Neck Dia. Not Applicable
