  6. 4-Flute HSS Ball Nose Single End MIll Cleveland HG-4B-TN TiN 1/2x1/2x1-1/4x3-1/4

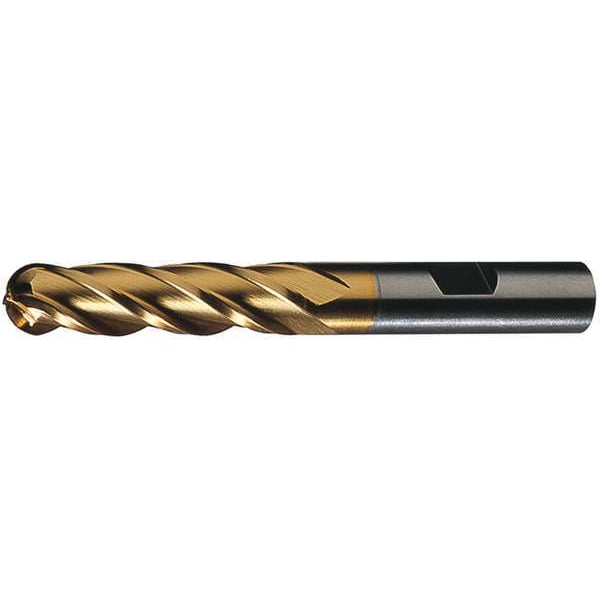

Cleveland 4-Flute HSS Ball Nose Single End MIll Cleveland HG-4B-TN TiN 1/2x1/2x1-1/4x3-1/4 C33306 - main

4-Flute HSS Ball Nose Single End MIll Cleveland HG-4B-TN TiN 1/2x1/2x1-1/4x3-1/4

  • Mfr # C33306

  • Zoro # G6036256

product price:  $66.29
/ea

Key Features

Dimension Type
Fractional Inch
Milling Diameter
1/2"
End Mill Material
High Speed Steel
Number of Flutes
4
Length of Cut
1.25 in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
C33306
Zoro #
G6036256
UPC #
697334333067
Country of Origin
United States

Dimensions

Dimension Type
Fractional Inch
Milling Diameter
1/2"
Length of Cut
1.25 in
Shank Dia.
1/2 in
Overall Length
3 1/4 in
Milling Dia.
0.5 in
Corner Radius
3-1/4"

Details

End Mill Material
High Speed Steel
Number of Flutes
4
Single End/Double End
Single
End Mill Cutting Type
Center Cutting
Grade
General Purpose
Helix Angle
30 Degrees
Item
Ball End Mill
End Mill Style
Ball Nose
List Number
HG-4B-TN
Shank Type
Weldon
Cutting Direction
Right Hand
End Mill Application
Finishing
Finish
Tin
Coolant Fed
Non-Coolant Through
Finish - Machining
TiN
Primary Material Application ISO Code
K, P
Measurement System
Inch
Material - Machining
High Speed Steel
Chip-Breaker
Chip-Breaker Not Included
Primary Material Application
Cast Iron, Steel
Material Grade - Machining
General Purpose
Shank Type - Machining
Weldon Flat
Drilling Tool Configuration
Individual
Spiral Direction
Right Hand
Material Applications
Cast Iron, Carbon Steel, Alloy Steel

Description

Ball End Mill, 0.5 in Milling Dia., High Speed Steel, TiN, Non-Coolant Through
