  6. 4-Flute HSS Center Cutting Square Double End Mill Cleveland HD-4C-TN TiN 13/32x1/2x1x4-1/8
Cleveland 4-Flute HSS Center Cutting Square Double End Mill Cleveland HD-4C-TN TiN 13/32x1/2x1x4-1/8 C33077 - main

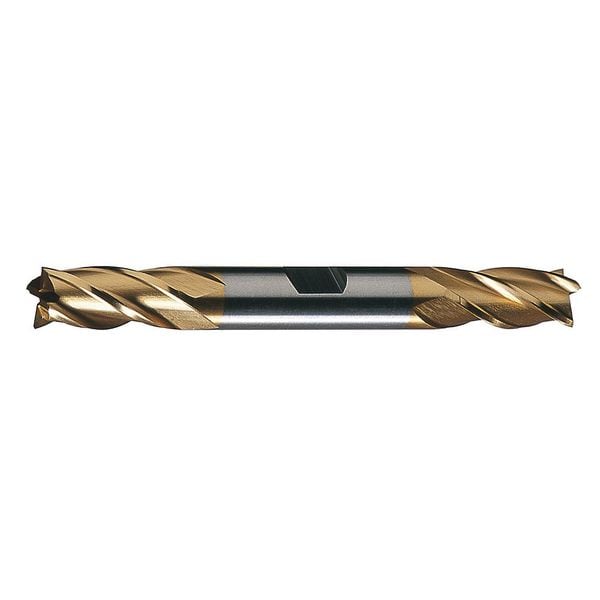

4-Flute HSS Center Cutting Square Double End Mill Cleveland HD-4C-TN TiN 13/32x1/2x1x4-1/8

  • Mfr # C33077

  • Zoro # G6018573

product price:  $36.59
/ea

Key Features

Milling Diameter
13/32"
Number of Flutes
4
End Mill Style
Square
Finish
Tin
Length of Cut
1 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
C33077
Zoro #
G6018573
UPC #
697334330776
Country of Origin
United States

Dimensions

Milling Diameter
13/32"
Length of Cut
1 in
Dimension Type
Fractional Inch
Corner Radius
4 1/8 in
Milling Dia.
0.40625 in
Shank Dia.
1/2 in
Overall Length
4 1/8 in

Details

Number of Flutes
4
End Mill Style
Square
Finish
Tin
Item
Square End Mill
List Number
HD-4C-TN
Grade
General Purpose
Cutting Direction
Right Hand
Helix Angle
30 Degrees
Single End/Double End
Double
End Mill Cutting Type
Center Cutting
End Mill Material
High Speed Steel
End Mill Application
Finishing
Measurement System
Inch
Cutting Direction - Machining
Right Hand
Material - Machining
High Speed Steel
Drilling Tool Configuration
Individual
Shank Type - Machining
Weldon Flat
Finish - Machining
TiN
Material Grade - Machining
General Purpose
Primary Material Application ISO Code
K, P
Primary Material Application
Cast Iron, Steel
Chip-Breaker
Chip-Breaker Not Included
Flute Type
Spiral
Secondary Material Application
Aluminum
Flute Spacing
Fixed
Coolant Fed
Non-Coolant Through
Max. Helix Angle
30 Degrees
Secondary Material Application ISO Code
N

Description

Square End Mill, 0.40625 in Milling Dia., High Speed Steel, TiN, Non-Coolant Through, Weldon Flat, Length of Cut 1 in, Overall Length 4 1/8 in, Shank Dia. 1/2 in, Neck Dia. Not Applicable
