  6. 4-Flute HSS Center Cutting Square Single End Mill Cleveland HG-4MC Bright 25mmx1x2x4-1/2

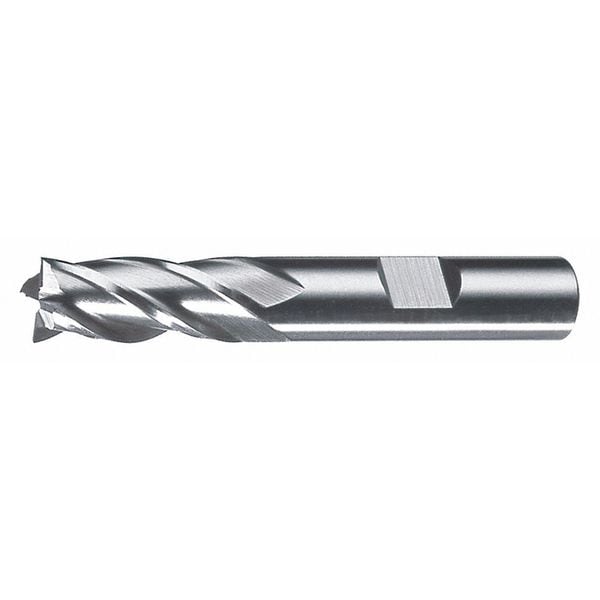

Cleveland 4-Flute HSS Center Cutting Square Single End Mill Cleveland HG-4MC Bright 25mmx1x2x4-1/2 C75113 - main

4-Flute HSS Center Cutting Square Single End Mill Cleveland HG-4MC Bright 25mmx1x2x4-1/2

  • Mfr # C75113

  • Zoro # G2979343

product price:  $59.25
/ea

Key Features

Dimension Type
Metric
Milling Diameter
25.00mm
End Mill Material
High Speed Steel
Number of Flutes
4
Length of Cut
50.8 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
C75113
Zoro #
G2979343
UPC #
697334924005
Country of Origin
United States

Dimensions

Dimension Type
Metric
Milling Diameter
25.00mm
Length of Cut
50.8 mm
Shank Dia.
25.4 mm
Overall Length
114.3 mm
Corner Radius
0.000 in
Milling Dia.
25 mm

Details

End Mill Material
High Speed Steel
Number of Flutes
4
Single End/Double End
Single
End Mill Cutting Type
Center Cutting
Grade
General Purpose
Non Ferrous (N) Compatibility
No
End Mill Application
Finishing
Super Alloy (S) Compatibility
No
Finish
Bright (Uncoated)
Item
Square End Mill
Cast Iron (K) Compatibility
Yes
Steel (P) Compatibility
Yes
Stainless (M) Compatibility
No
End Mill Style
Square
Helix Angle
30 Degrees
Cutting Direction
Right Hand
Hardened (H) Compatibility
No
List Number
HG-4MC
Shank Type
Weldon
Cutting Direction - Machining
Right Hand
Material - Machining
High Speed Steel
Shank Type - Machining
Weldon Flat
Measurement System
Metric
Drilling Tool Configuration
Individual
Finish - Machining
Uncoated
Material Grade - Machining
General Purpose
Primary Material Application ISO Code
K, P
Primary Material Application
Cast Iron, Steel
Chip-Breaker
Chip-Breaker Not Included
Flute Spacing
Fixed
Flute Type
Spiral
Secondary Material Application ISO Code
N
Secondary Material Application
Aluminum
Coolant Fed
Non-Coolant Through
Max. Helix Angle
30 Degrees

Description

Square End Mill, 25 mm Milling Dia., High Speed Steel, Uncoated, Non-Coolant Through, Weldon Flat, Length of Cut 50.8 mm, Overall Length 114.3 mm, Shank Dia. 25.4 mm, Neck Dia. Not Applicable
