  6. 4-Flute PM+ HSS-E Ball Nose Single Finishing End Mill Cleveland PM-4B-TC TiCN 3/16x3/8x1/2x2-3/8

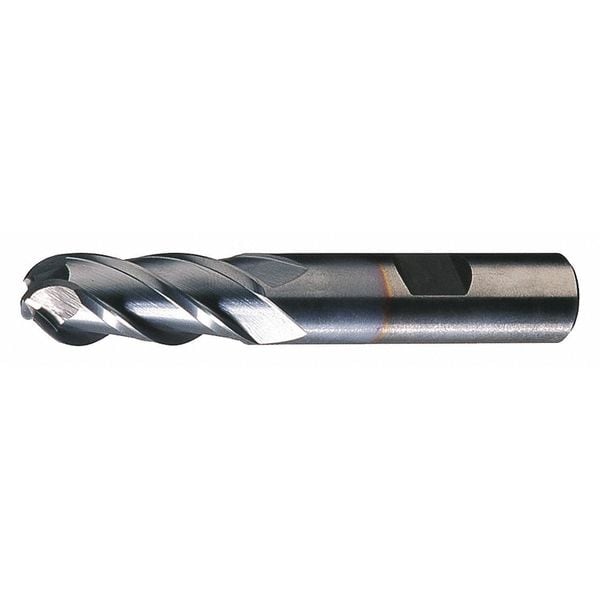

Cleveland 4-Flute PM+ HSS-E Ball Nose Single Finishing End Mill Cleveland PM-4B-TC TiCN 3/16x3/8x1/2x2-3/8 C32058 - main

4-Flute PM+ HSS-E Ball Nose Single Finishing End Mill Cleveland PM-4B-TC TiCN 3/16x3/8x1/2x2-3/8

  • Mfr # C32058

  • Zoro # G2965431

product price:  $70.99
/ea

Key Features

Dimension Type
Fractional Inch
Milling Diameter
3/16"
End Mill Material
Powdered Metal
Number of Flutes
4
Length of Cut
0.5 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
C32058
Zoro #
G2965431
UPC #
697334320586
Country of Origin
United States

Dimensions

Dimension Type
Fractional Inch
Milling Diameter
3/16"
Length of Cut
0.5 in
Shank Dia.
3/8 in
Corner Radius
0.000"
Overall Length
2 3/8 in
Milling Dia.
0.1875 in

Details

End Mill Material
Powdered Metal
Number of Flutes
4
Single End/Double End
Single
End Mill Cutting Type
Center Cutting
Grade
High Performance
Helix Angle
37 Degrees
Cast Iron (K) Compatibility
Yes
List Number
PM-4B
Non Ferrous (N) Compatibility
No
Shank Type
Weldon
Finish
Ticn
Stainless (M) Compatibility
Yes
End Mill Application
Finishing
Item
Ball End Mill
Steel (P) Compatibility
Yes
Hardened (H) Compatibility
Yes
Super Alloy (S) Compatibility
Yes
End Mill Style
Ball Nose
Cutting Direction
Right Hand
Shank Type - Machining
Weldon Flat
Chip-Breaker
Chip-Breaker Not Included
Primary Material Application
All Materials
Material - Machining
Powdered Metal
Primary Material Application ISO Code
K, M, N, O, P, S
Drilling Tool Configuration
Individual
Coolant Fed
Non-Coolant Through
Finish - Machining
TiCN
Measurement System
Inch
Material Grade - Machining
High Performance

Description

Ball End Mill, 0.1875 in Milling Dia., Powdered Metal, TiCN, Non-Coolant Through
