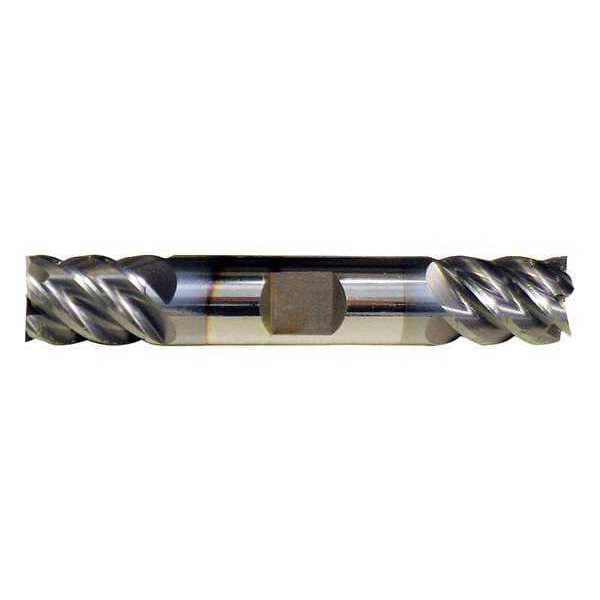

5-Flute Carbide High-Perf Sqaure DoubleEnd Mill CTD CEM-HPDE-5 Bright 7/16"x7/16"x9/16"x3"

Mfr # C60105
Zoro # G8835802

90.89

Key Features

Number of Flutes

End Mill Style

Square

Length of Cut

0.5625 in

End Mill Cutting Type

Center Cutting

Milling Diameter

7/16"

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: C60105
Zoro #: G8835802
UPC #: 697334601050
Country of Origin: United States

Dimensions

Length of Cut: 0.5625 in
Milling Diameter: 7/16"
Dimension Type: Fractional Inch
Overall Length: 3 in
Shank Dia.: 7/16 in
Milling Dia.: 0.4375 in
Wire Rope Length: 3 in
Length: 3 in

Details

Number of Flutes: 5
End Mill Style: Square
Finish: Bright (Uncoated)
End Mill Cutting Type: Center Cutting
End Mill Material: Carbide
End Mill Application: Finishing
Grade: High Performance
Helix Angle: 47 Degrees
Cast Iron (K) Compatibility: No
Single End/Double End: Double
Cutting Direction: Right Hand
Non Ferrous (N) Compatibility: No
Hardened (H) Compatibility: Yes
Super Alloy (S) Compatibility: Yes
Steel (P) Compatibility: Yes
List Number: CEM-HPDE-5
Stainless (M) Compatibility: Yes
Item: Square End Mill
Measurement System: Inch
Cutting Direction - Machining: Right Hand
Drilling Tool Configuration: Individual
Material - Machining: Carbide
Shank Type - Machining: Straight
Finish - Machining: Uncoated
Material Grade - Machining: High Performance
Primary Material Application: Titanium
Primary Material Application ISO Code: S
Chip-Breaker: Chip-Breaker Not Included
Flute Spacing: Fixed
Coolant Fed: Non-Coolant Through
Secondary Material Application: Stainless Steel, Steel
Max. Helix Angle: 47 Degrees
Flute Type: Spiral
Secondary Material Application ISO Code: M, P

Description

Square End Mill, 0.4375 in Milling Dia., Carbide, Uncoated, Non-Coolant Through, Straight, Length of Cut 0.5625 in, Overall Length 3 in, Shank Dia. 7/16 in, Neck Dia. Not Applicable
