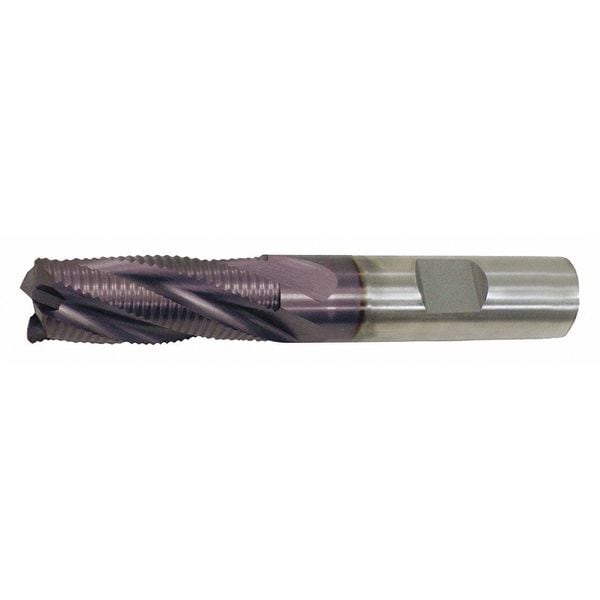

5-Flute Cobalt 8% Fine Square Single Roughing End Mill Cleveland RG6-TA TiAlN 1"x1"x1"x3-1/2"

Mfr # C31063
Zoro # G2963462

140.99

Free Shipping & Returns

Key Features

Dimension Type

Fractional Inch

Milling Diameter

End Mill Material

Cobalt

Number of Flutes

Length of Cut

1 in

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: C31063
Zoro #: G2963462
UPC #: 697334310631
Country of Origin: United States

Dimensions

Dimension Type: Fractional Inch
Milling Diameter: 1"
Length of Cut: 1 in
Shank Dia.: 1 in
Overall Length: 3 1/2 in
Milling Dia.: 1 in
Corner Radius: 0.000 in
Wire Rope Length: 3 1/2 in
Length: 3 1/2 in

Details

End Mill Material: Cobalt
Number of Flutes: 5
Single End/Double End: Single
End Mill Cutting Type: Center Cutting
Grade: Heavy Duty
Stainless (M) Compatibility: Yes
End Mill Application: Roughing
Shank Type: Weldon
Item: Roughing End Mill
Non Ferrous (N) Compatibility: No
Cutting Direction: Right Hand
Helix Angle: 30 Degrees
Finish: TiAlN
List Number: RG6-TA
Super Alloy (S) Compatibility: Yes
End Mill Style: Square
Hardened (H) Compatibility: No
Cast Iron (K) Compatibility: No
Steel (P) Compatibility: Yes
Pitch: Fine
Measurement System: Inch
Cutting Direction - Machining: Right Hand
Material - Machining: Cobalt
Drilling Tool Configuration: Individual
Shank Type - Machining: Weldon Flat
Finish - Machining: TiAlN
Material Grade - Machining: Heavy Duty
Primary Material Application: Stainless Steel, Steel
Primary Material Application ISO Code: M, P
Chip-Breaker: Yes
Secondary Material Application ISO Code: S
Flute Spacing: Fixed
Flute Type: Spiral
Coolant Fed: Non-Coolant Through
Secondary Material Application: Nickel, Titanium
Max. Helix Angle: 30 Degrees

Description

Roughing End Mill, 1 in Milling Dia., Cobalt, TiAlN, Non-Coolant Through, Weldon Flat, Length of Cut 1 in, Overall Length 3 1/2 in, Shank Dia. 1 in, Neck Dia. Not Applicable
