Shop CLEVELAND

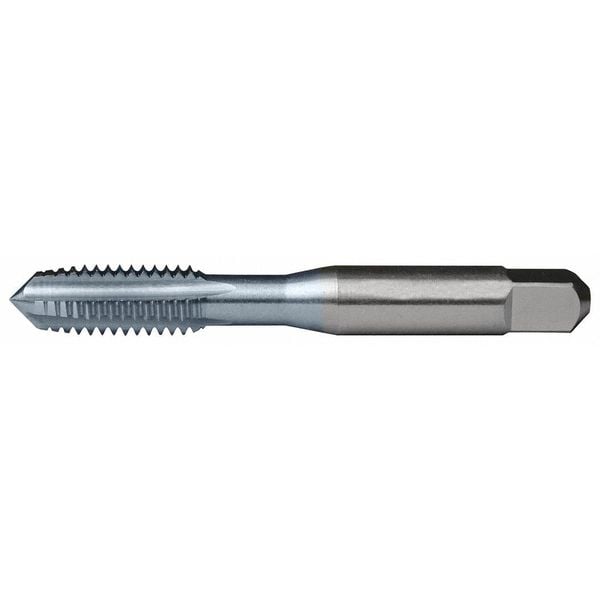

Straight Flute Hand Tap, Plug, 3

  • Mfr # C56052

  • Zoro # G2538669

product price:  $11.89
/ea

Key Features

Shank Dia.
Shank Dia.: 0.141"
Tap Chamfer
Plug
Tap Dimension Type
Inch
Tap Material
High Speed Steel
Tap Size
#4
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
C56052
Zoro #
G2538669
UPC #
697334560524
Country of Origin
United States

Dimensions

Shank Dia.
Shank Dia.: 0.141"
Tap Dimension Type
Inch
Tap Size
#4
Overall Length
1-7/8"
Tap Thread Size
#4-40
Pitch Diameter Limit
H2
Thread Length
9/16"
75% Thread Drill Size
2.20 mm
Thread Size
#4-40
Square Size
0.1100 in
Shank Length
1 9/32 in
Tap Length Standard
USCTI
55% Thread Drill Size
3/32 in
65% Thread Drill Size
2.30 mm
Square Width
0.11 in
Shank Diameter
0.141 in
Square Length
0.11 in

Details

Item
Straight Flute Hand Tap
Tap Chamfer
Plug
Tap Material
High Speed Steel
Tap Style
Straight Flute (Hand)
Number of Flutes
3
Tap Finish
TiCN
Thread Direction
Right Hand
Standards
USCTI Table 302A
Number of Pieces
1
Tap Thread Type
UNC
List Number
1002-TC
Cutting Direction - Machining
Right Hand
Series
1002-TC
Threads per Inch
40
Spiral Direction
Neutral
Extended Neck
Yes
Thread Limit
H2
Tap Shank Standard
USCTI
Shank Type - Machining
Straight
Thread Standard
UNC
Primary Material Application ISO Code
K, M, N, P
Primary Material Application
Aluminum, Brass, Bronze, Cast Iron, Copper, Stainless Steel, Steel
Class of Fit
2B
Measurement System
Pipe
Helix Angle
0 Degrees
Tap Application
Blind Hole, Through Hole
Impact Rated
Not Impact Rated
Shank Type
Square

Description

Straight Flute Tap, Thread Size #4-40, UNC, Plug, Overall Length 1.88 in, High Speed Steel, TiCN, Right Hand, Thread Length 0.56 in, 75 Percent Thread Drill Size 2.20 mm, Thread Limit H2, Class of Fit 2B
