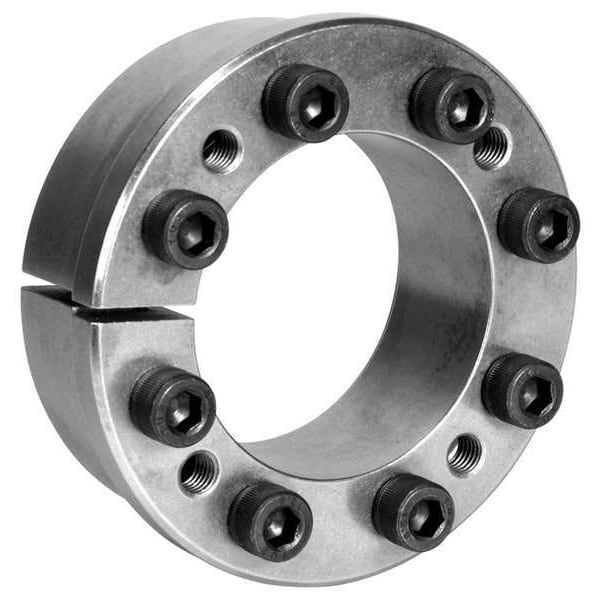

C133E-193 Keyless Locking Assembly
Mfr # C133E-193
Zoro # G6638554
product price: $72.59
/eaKey Features
Keyless Bushing Type
Multi-Screw Locking Assembly
Keyless Bushing Series
C133
For Shaft Dia. - Bushings
1 15/16 in
Outside Dia. (In.)
3.15
Overall Length
1.673 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
C133E-193
Zoro #
G6638554
UPC #
044861074589
Country of Origin
Italy
Dimensions
For Shaft Dia. - Bushings
1 15/16 in
Outside Dia. (In.)
3.15
Overall Length
1.673 in
Overall Length (In.)
1.673
Shaft Dia. (In.)
1.9375
Outside Dia. Tolerance
+0.002 in
Shaft Dia. Tolerance
-0.002
Outside Dia.
3.15 in
Bolt Size
M8 x 25
Screw Thread Size
M8 x 25
Overall Width
1.673 in
Outside Diameter
3 9/64 in
Outside Diameter Tolerance
+0.002 in
For Bore Diameter
1 15/16 in
Description
Keyless Bushing, Flange Type Flanged, For Bore Diameter 1 15/16 in, Keyless Bushing Type Multi-Screw Locking Assembly, Material Steel, Outside Diameter 3 9/64 in, Overall Width 1.673 in, System of Measurement Inch, Finish Oil Dipped, Hub Contact Pressure 17,333 psi, Maximum Transmitted Torque 1,308 ft-lb, Outside Diameter Tolerance +0.002 in
