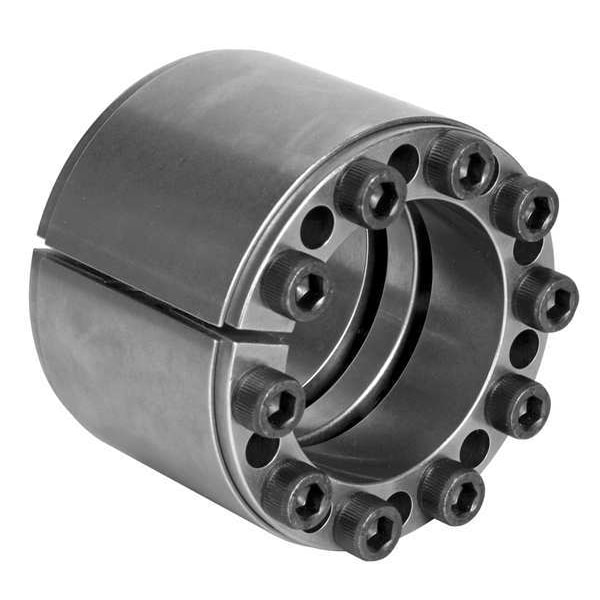

C405E-175 Keyless Locking Assembly
Mfr # C405E-175
Zoro # G6683223
product price: $204.99
/ea
Free Shipping & Returns
Key Features
Keyless Bushing Type
Multi-Screw Locking Assembly
Keyless Bushing Series
C405
For Shaft Dia. - Bushings
1 3/4 in
Outside Dia. (In.)
2.953
Overall Length
2.441 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
C405E-175
Zoro #
G6683223
UPC #
044861075548
Country of Origin
Italy
Dimensions
For Shaft Dia. - Bushings
1 3/4 in
Outside Dia. (In.)
2.953
Overall Length
2.441 in
Outside Dia.
2.953 in
Outside Dia. Tolerance
+0.002 in
Shaft Dia. Tolerance
-0.002
Overall Length (In.)
2.441
Bolt Size
M6 x 45
Shaft Dia. (In.)
1.75
Outside Diameter
2 15/16 in
For Bore Diameter
1 3/4 in
Screw Thread Size
M6 x 45
Overall Width
2.441 in
Outside Diameter Tolerance
+0.002 in
Description
Keyless Bushing, Flange Type None, For Bore Diameter 1 3/4 in, Keyless Bushing Type Multi-Screw Locking Assembly, Material Steel, Outside Diameter 2 15/16 in, Overall Width 2.441 in, System of Measurement Inch, Finish Oil Dipped, Hub Contact Pressure 21,752 psi, Maximum Transmitted Torque 2,363 ft-lb, Outside Diameter Tolerance +0.002 in
