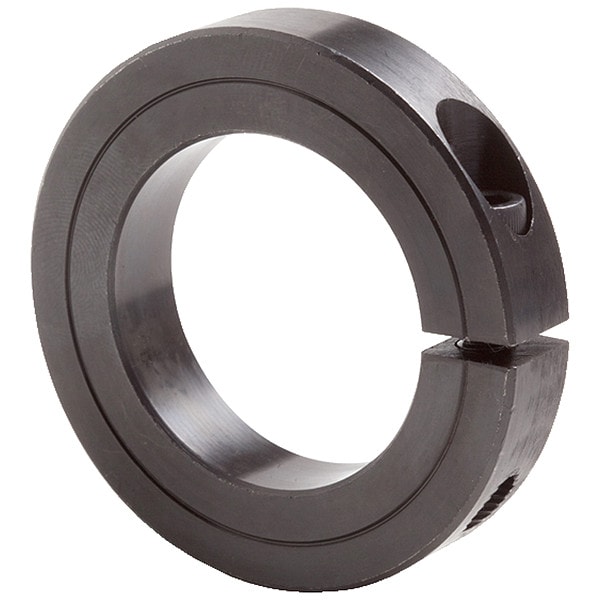

H1C-343 One-Piece Clamping Collar
Mfr # H1C-343
Zoro # G7205152
product price: $59.39
/eaKey Features
Material
Black Oxide Steel
Number of Pieces
1
Collar Style
Clamp
Outside Dia.
4 3/4 in
Dimension Type
Inch
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
H1C-343
Zoro #
G7205152
UPC #
044861152393
Country of Origin
United States
Dimensions
Bore Dia.
3 7/16 in
Outside Dia.
4 3/4 in
Dimension Type
Inch
Width
7/8 in
Screw Size
3/8"-24 x 1"
Clearance Dia.
4.937 in
Width Tolerance
+0.005/-0.005 in
For Shaft Diameter
3 7/16 in
Bore Diameter
3 7/16 in
Screw Thread Size
3/8"-24
Screw Length
1 in
Collar Width
7/8 in
Collar Outside Diameter
4 3/4 in
Clearance Diameter
4.94 in
Description
Shaft Collar, System of Measurement Inch, Bore Type Round, Bore Diameter 3 7/16 in, Bore Thread Size Not Applicable, Collar Outside Diameter 4 3/4 in, Inside Height to Flat Not Applicable, Clearance Diameter 4.94 in, Collar Width 7/8 in, Collar Material Carbon Steel, Keyway Width Not Applicable, Collar Material Grade 1211, Keyway Depth Not Applicable, Thread Direction Not Applicable, Center to Lever Top Not Applicable, Collar Construction 1-Piece, Screw Material Carbon Steel
