H2C-156 Two-Piece Clamping Collar Recessed Screw
Mfr # H2C-156
Zoro # G1947970
product price: $17.19
/eaKey Features
Material
Black Oxide Steel
Number of Pieces
2
Collar Style
Clamp
Outside Dia.
2 1/2 in
Dimension Type
Inch
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
H2C-156
Zoro #
G1947970
UPC #
044861255162
Country of Origin
United States
Dimensions

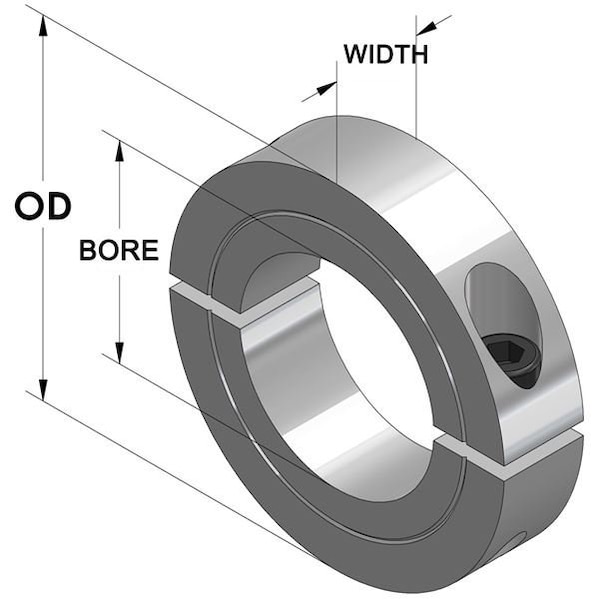

Bore Dia.
1 9/16 in
Outside Dia.
2 1/2 in
Dimension Type
Inch
Width
1/2 in
Screw Size
1/4"-28 x 3/4 in
Clearance Dia.
2.5 in
Width Tolerance
+0.005/-0.005 in
Screw Length
3/4 in
Bore Diameter
1 9/16 in
For Shaft Diameter
1 9/16 in
Collar Outside Diameter
2 1/2 in
Collar Width
1/2 in
Clearance Diameter
2.5 in
Screw Thread Size
1/4"-28
Description
Shaft Collar, System of Measurement Inch, Bore Type Round, Bore Diameter 1 9/16 in, Bore Thread Size Not Applicable, Collar Outside Diameter 2 1/2 in, Inside Height to Flat Not Applicable, Clearance Diameter 2.5 in, Collar Width 1/2 in, Collar Material Carbon Steel, Keyway Width Not Applicable, Collar Material Grade 1211, Keyway Depth Not Applicable, Thread Direction Not Applicable, Center to Lever Top Not Applicable, Collar Construction 2-Piece, Screw Material Carbon Steel
