  11. ISCC-062-062-S One-Piece Industry Standard Clamping Coupling

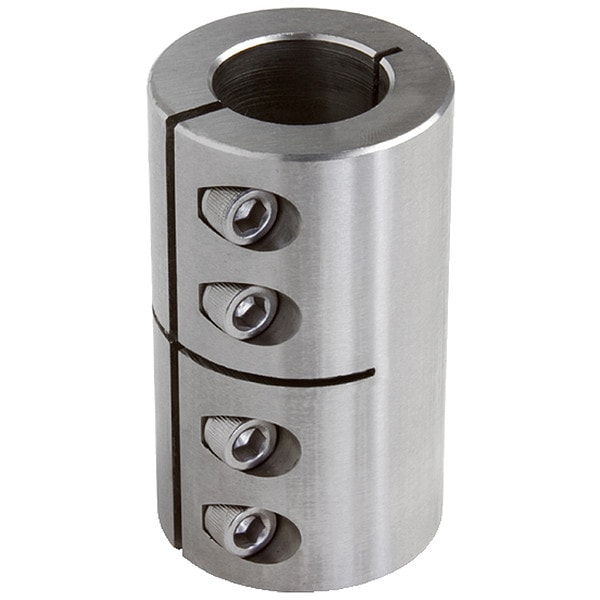

Climax Metal Products ISCC-062-062-S One-Piece Industry Standard Clamping Coupling ISCC-062-062-S - main

ISCC-062-062-S One-Piece Industry Standard Clamping Coupling

  • Mfr # ISCC-062-062-S

  • Zoro # G6933595

product price: $79.39
/ea
Free Shipping & Returns

Key Features

Shaft Locking Type - Couplings
1 Piece Clamp
System of Measurement
Inch
Bore Dia.
5/8 in
Material - Couplings
Stainless Steel
Outside Dia.
1 9/16 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ISCC-062-062-S
Zoro #
G6933595
UPC #
044861434161
Country of Origin
United States

Dimensions

Bore Dia.
5/8 in
Outside Dia.
1 9/16 in
Overall Length
2 in
Screw Size
#10-32
Screw Size (In.)
10-32 x 1/2
Clearance Dia.
1.563 in
Clearance Dia. (In.)
1-9/16
Coupling Outside Diameter
1 5/16 in
Screw Thread Size
#10-32
Maximum Bore Diameter
5/8 in
Bore Diameter 2
5/8 in
Minimum Bore Diameter
5/8 in
Clearance Diameter
1.56 in
Different Bore Sizes
No
Bore Diameter 1
5/8 in

Details

Shaft Locking Type - Couplings
1 Piece Clamp
Item
Rigid Shaft Coupling
System of Measurement
Inch
Material - Couplings
Stainless Steel
With Keyway / Without Keyway
Without Keyway
Finish
Plain
Max. Torque
470 in-lb
Max. RPM
4,000 RPM
Item - Rigid Shaft Couplings
Rigid Shaft Coupling
Material
Stainless Steel
Machined From
Bar Stock
Type
One Piece Clamp Type, Without Keyway
Application
For Applications where Alignment is Critical, Particularly when no Backlash is Desired and Flexibility is not Required, Useful when Timing, Joining and/or Aligning Shafts at Lower Speeds and Torque
Design
(4) Socket Capscrews
Max. Torque (In.-Lbs.)
470
Standards
Conflict Minerals and Materials Compliant, DFARS Compliant, REACH Compliant, RoHS3 Compliant
Screw Material
Stainless Steel
Bore Tolerance
+0.003 in / -0.000 in
Number of Locking Screws
4
Screw Material Finish
Plain
Shaft Locking Type
Clamp On
Screw Material Grade
304
Bore Type
Round
Maximum Torque
470 in-lb
Coupling Material Grade
303
Coupling Material Finish
Plain
Included Screws
(4) Hex Socket Cap Screws
Zero Backlash
Yes
Maximum Speed
4,000 RPM
Coupling Construction
One-Piece
Coupling Material
Stainless Steel

Description

Rigid Shaft Coupling, Bore Diameter 1 5/8 in, Bore Diameter 2 5/8 in, Bore Type Round, Clearance Diameter 1.56 in, Coupling Construction One-Piece, Coupling Material Stainless Steel, Coupling Outside Diameter 1 5/16 in, Different Bore Sizes No, Keyway Depth 1 Not Applicable, Keyway Depth 2 Not Applicable, Minimum Bore Diameter 5/8 in, Keyway Width 1 Not Applicable, Keyway Width 2 Not Applicable, Maximum Bore Diameter 5/8 in, Maximum Speed 4,000 RPM, Maximum Torque 470 in-lb, Overall Length 2 in
