Shop CLIMAX METAL PRODUCTS

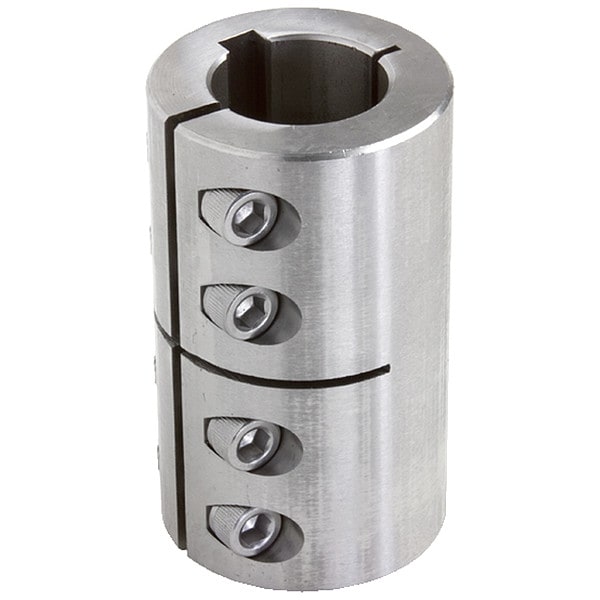

ISCC-087-087SKW One-Piece Industry Standard Clamping Coupling with Keyway

  • Mfr # ISCC-087-087SKW

  • Zoro # G6647453

product price:
$
140.99
/ea
Free Shipping & Returns

Key Features

Shaft Locking Type - Couplings
1 Piece Clamp
System of Measurement
Inch
Bore Dia.
7/8 in
Material - Couplings
Stainless Steel
Outside Dia.
1 15/16 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
ISCC-087-087SKW
Zoro #
G6647453
UPC #
044861431184
Country of Origin
United States

Dimensions

Bore Dia.
7/8 in
Outside Dia.
1 15/16 in
Overall Length
2 1/2 in
Clearance Dia. (In.)
1-15/16
Keyway Width
3/16 in
Screw Size (In.)
1/4-28 x 5/8
Screw Size
1/4"-28
Clearance Dia.
1.938 in
Keyway Width (In.)
3/16
Screw Thread Size
1/4"-28
Keyway Width 1
3/16 in
Minimum Bore Diameter
7/8 in
Keyway Width 2
3/16 in
Bore Diameter 2
7/8 in
Coupling Outside Diameter
1 5/8 in
Bore Diameter 1
7/8 in
Keyway Depth 1
3/32 in
Maximum Bore Diameter
7/8 in
Clearance Diameter
1.94 in
Keyway Depth 2
3/32 in
Different Bore Sizes
No
Wire Rope Length
2 1/2 in
Length
2 1/2 in

Details

Item
Rigid Shaft Coupling
Shaft Locking Type - Couplings
1 Piece Clamp
System of Measurement
Inch
Material - Couplings
Stainless Steel
With Keyway / Without Keyway
With Keyway
Finish
Plain
Max. Torque (In.-Lbs.)
1160
Application
For Applications where Alignment is Critical, Particularly when no Backlash is Desired and Flexibility is not Required, Useful when Timing, Joining and/or Aligning Shafts at Lower Speeds and Torque
Material
Stainless Steel
Type
One Piece Clamp Type, with Keyway
Max. Torque
1,160 in-lb
Item - Rigid Shaft Couplings
Rigid Shaft Coupling
Machined From
Bar Stock
Design
(4) Socket Capscrews
Max. RPM
4,000 RPM
Standards
Conflict Minerals and Materials Compliant, DFARS Compliant, REACH Compliant, RoHS3 Compliant
Screw Material
Stainless Steel
Bore Tolerance
+0.003 in / -0.000 in
Coupling Material Finish
Plain
Included Screws
(4) Hex Socket Cap Screws
Shaft Locking Type
Clamp On
Screw Material Grade
304
Number of Locking Screws
4
Zero Backlash
Yes
Maximum Speed
4,000 RPM
Maximum Torque
1,160 in-lb
Screw Material Finish
Plain
Bore Type
Round Keyed
Coupling Construction
One-Piece
Coupling Material Grade
303
Coupling Material
Stainless Steel

Description

Rigid Shaft Coupling, Bore Diameter 1 7/8 in, Bore Diameter 2 7/8 in, Bore Type Round Keyed, Clearance Diameter 1.94 in, Coupling Construction One-Piece, Coupling Material Stainless Steel, Coupling Outside Diameter 1 5/8 in, Different Bore Sizes No, Keyway Depth 1 3/32 in, Keyway Depth 2 3/32 in, Minimum Bore Diameter 7/8 in, Keyway Width 1 3/16 in, Keyway Width 2 3/16 in, Maximum Bore Diameter 7/8 in, Maximum Speed 4,000 RPM, Maximum Torque 1,160 in-lb, Overall Length 2 1/2 in
