  11. ISCC-150-100 One-Piece Industry Standard Clamping Coupling

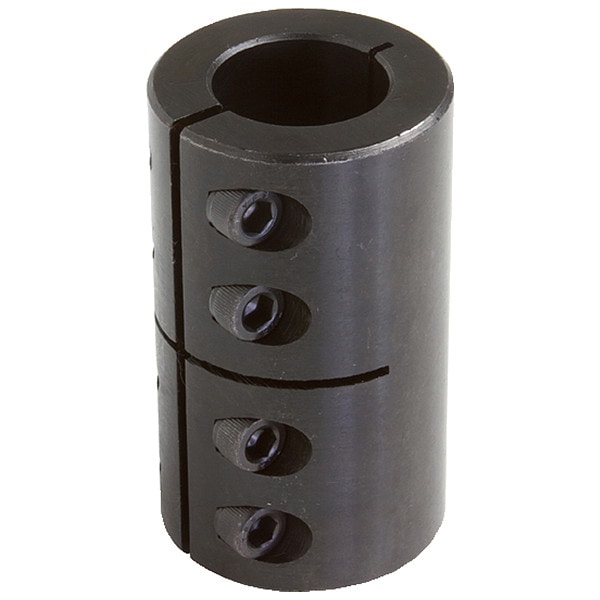

Climax Metal Products ISCC-150-100 One-Piece Industry Standard Clamping Coupling ISCC-150-100 - main

ISCC-150-100 One-Piece Industry Standard Clamping Coupling

  • Mfr # ISCC-150-100

  • Zoro # G6553242

product price: $95.49
/ea
Free Shipping & Returns

Key Features

Shaft Locking Type - Couplings
1 Piece Clamp
System of Measurement
Inch
Bore Dia.
1 in x 1-1/2 in
Material - Couplings
Steel
Outside Dia.
2 15/16 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ISCC-150-100
Zoro #
G6553242
UPC #
044861044421
Country of Origin
United States

Dimensions

Bore Dia.
1 in x 1-1/2 in
Outside Dia.
2 15/16 in
Overall Length
3 7/8 in
Screw Size
5/16"-24
Clearance Dia.
2.938 in
Screw Size (In.)
5/16-24 x 1
Clearance Dia. (In.)
2-15/16
Screw Thread Size
5/16"-24
Clearance Diameter
2.94 in
Bore Diameter 1
1 1/2 in
Maximum Bore Diameter
1 1/2 in
Bore Diameter 2
1 in
Minimum Bore Diameter
1 in
Different Bore Sizes
Yes
Coupling Outside Diameter
2 5/8 in

Details

Item
Rigid Shaft Coupling
Shaft Locking Type - Couplings
1 Piece Clamp
System of Measurement
Inch
Material - Couplings
Steel
With Keyway / Without Keyway
Without Keyway
Finish
black oxide
Application
For Applications where Alignment is Critical, Particularly when no Backlash is Desired and Flexibility is not Required, Useful when Timing, Joining and/or Aligning Shafts at Lower Speeds and Torque
Max. Torque (In.-Lbs.)
4750
Design
Locks Securely to Shafting with (2) Socket Setscrews
Max. Torque
4,750 in-lb
Material
Steel
Machined From
Bar Stock
Max. RPM
4,000 RPM
Type
One Piece Clamp Type, Without Keyway
Item - Rigid Shaft Couplings
Rigid Shaft Coupling
Standards
Conflict Minerals and Materials Compliant, DFARS Compliant, REACH Compliant, RoHS3 Compliant
Bore Tolerance
+0.000 in / -0.003 in
Screw Material
Carbon Steel
Bore Type
Round
Maximum Speed
4,000 RPM
Coupling Material
Carbon Steel
Maximum Torque
4,750 in-lb
Coupling Material Grade
1211
Shaft Locking Type
Clamp On
Number of Locking Screws
4
Coupling Construction
One-Piece
Coupling Material Finish
Black Oxide
Screw Material Grade
4140
Zero Backlash
Yes
Included Screws
(4) Hex Socket Cap Screws
Screw Material Finish
Black Oxide

Description

Rigid Shaft Coupling, Bore Diameter 1 1 1/2 in, Bore Diameter 2 1 in, Bore Type Round, Clearance Diameter 2.94 in, Coupling Construction One-Piece, Coupling Material Carbon Steel, Coupling Outside Diameter 2 5/8 in, Different Bore Sizes Yes, Keyway Depth 1 Not Applicable, Keyway Depth 2 Not Applicable, Minimum Bore Diameter 1 in, Keyway Width 1 Not Applicable, Keyway Width 2 Not Applicable, Maximum Bore Diameter 1 1/2 in, Maximum Speed 4,000 RPM, Maximum Torque 4,750 in-lb
