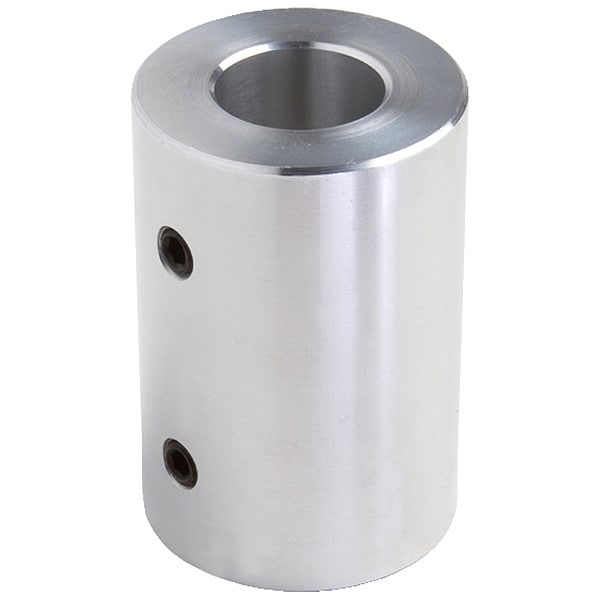

Climax Metal Products RC-031-A Set Screw Coupling RC-031-A - main

RC-031-A Set Screw Coupling

  • Mfr # RC-031-A

  • Zoro # G2663440

product price: $11.99
/ea

Key Features

Shaft Locking Type - Couplings
1 Piece Set Screw
System of Measurement
Inch
Bore Dia.
5/16 in
Outside Dia.
5/8 in
Overall Length
1 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
RC-031-A
Zoro #
G2663440
UPC #
044861358733
Country of Origin
United States

Dimensions

Bore Dia.
5/16 in
Outside Dia.
5/8 in
Overall Length
1 in
Clearance Dia. (In.)
0.625
Screw Size (In.)
10-32 x 1/8
Screw Size
#10-32
Clearance Dia.
0.625 in
Bore Diameter 1
5/16 in
Screw Thread Size
#10-32
Maximum Bore Diameter
5/16 in
Minimum Bore Diameter
5/16 in
Bore Diameter 2
5/16 in
Different Bore Sizes
No
Coupling Outside Diameter
5/8 in
Clearance Diameter
0.63 in

Details

Shaft Locking Type - Couplings
1 Piece Set Screw
Item
Rigid Shaft Coupling
System of Measurement
Inch
Material - Couplings
Aluminum
With Keyway / Without Keyway
Without Keyway
Finish
Plain
Item - Rigid Shaft Couplings
Rigid Shaft Coupling
Material
Aluminum
Type
Set Screw Type
Application
For Applications where Alignment is Critical, Particularly when no Backlash is Desired and Flexibility is not Required, Useful when Timing, Joining and/or Aligning Shafts at Lower Speeds and Torque
Machined From
Bar Stock
Standards
Conflict Minerals and Materials Compliant, DFARS Compliant, REACH Compliant, RoHS3 Compliant
Screw Material
Carbon Steel
Bore Tolerance
+0.0025 in / +0.0005 in
Coupling Construction
One-Piece
Coupling Material Finish
Plain
Number of Locking Screws
2
Screw Material Finish
Black Oxide
Maximum Speed
3,500 RPM
Screw Material Grade
4140
Coupling Material Grade
6061
Bore Type
Round
Maximum Torque
74 in-lb
Included Screws
(2) Hex Socket Set Screw
Coupling Material
Aluminum
Zero Backlash
Yes
Shaft Locking Type
Set Screw

Description

Rigid Shaft Coupling, Bore Diameter 1 5/16 in, Bore Diameter 2 5/16 in, Bore Type Round, Clearance Diameter 0.63 in, Coupling Construction One-Piece, Coupling Material Aluminum, Coupling Outside Diameter 5/8 in, Different Bore Sizes No, Keyway Depth 1 Not Applicable, Keyway Depth 2 Not Applicable, Minimum Bore Diameter 5/16 in, Keyway Width 1 Not Applicable, Keyway Width 2 Not Applicable, Maximum Bore Diameter 5/16 in, Maximum Speed 3,500 RPM, Maximum Torque 74 in-lb, Overall Length 1 in
