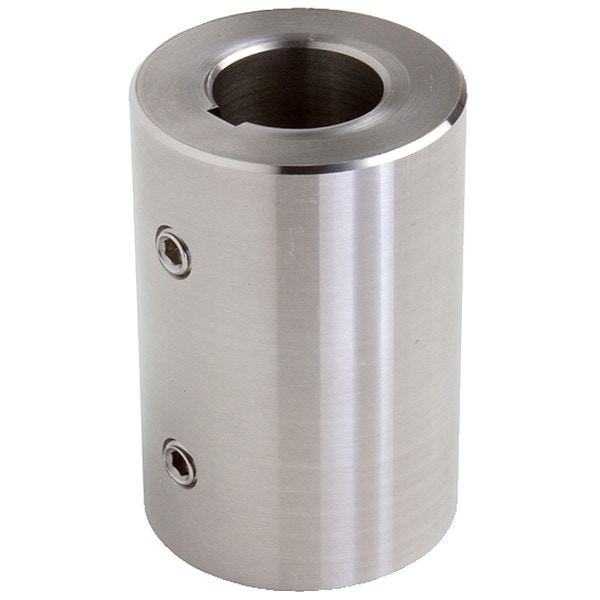

Climax Metal Products RC-050-S-KW Set Screw Coupling with Keyway RC-050-S-KW - main

RC-050-S-KW Set Screw Coupling with Keyway

  • Mfr # RC-050-S-KW

  • Zoro # G6879862

product price: $39.89
/ea

Key Features

Shaft Locking Type - Couplings
1 Piece Set Screw
System of Measurement
Inch
Bore Dia.
1/2 in
Outside Dia.
1 in
Overall Length
1 1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
RC-050-S-KW
Zoro #
G6879862
UPC #
044861352502
Country of Origin
United States

Dimensions

Bore Dia.
1/2 in
Outside Dia.
1 in
Overall Length
1 1/2 in
Screw Size (In.)
1/4-20 x 3/16
Keyway Width
1/8 in
Screw Size
1/4"-20
Clearance Dia. (In.)
1
Keyway Width (In.)
1/8
Clearance Dia.
1.0 in
Maximum Bore Diameter
1/2 in
Clearance Diameter
1 in
Bore Diameter 1
1/2 in
Keyway Width 2
1/8 in
Minimum Bore Diameter
1/2 in
Screw Thread Size
1/4"-20
Different Bore Sizes
No
Keyway Width 1
1/8 in
Bore Diameter 2
1/2 in
Keyway Depth 1
1/16 in
Keyway Depth 2
1/16 in
Coupling Outside Diameter
1 in

Details

Shaft Locking Type - Couplings
1 Piece Set Screw
Item
Rigid Shaft Coupling
System of Measurement
Inch
Material - Couplings
Stainless Steel
With Keyway / Without Keyway
With Keyway
Finish
Plain
Type
One Piece Set Screw, with Keyway
Application
For Applications where Alignment is Critical, Particularly when no Backlash is Desired and Flexibility is not Required, Useful when Timing, Joining and/or Aligning Shafts at Lower Speeds and Torque
Machined From
Bar Stock
Max. Torque
138 in-lb
Item - Rigid Shaft Couplings
Rigid Shaft Coupling
Max. Torque (In.-Lbs.)
138
Design
Locks Securely to Shafting with (2) Socket Setscrews
Max. RPM
3,500 RPM
Material
Stainless Steel
Standards
Conflict Minerals and Materials Compliant, DFARS Compliant, REACH Compliant, RoHS3 Compliant
Bore Tolerance
+0.0025 in / +0.0005 in
Screw Material
Stainless Steel
Maximum Torque
138 in-lb
Shaft Locking Type
Set Screw
Coupling Material
Stainless Steel
Coupling Material Grade
303
Bore Type
Round Keyed
Screw Material Finish
Plain
Included Screws
(2) Hex Socket Set Screw
Coupling Construction
One-Piece
Number of Locking Screws
2
Maximum Speed
3,500 RPM
Zero Backlash
Yes
Coupling Material Finish
Plain
Screw Material Grade
18-8

Description

Rigid Shaft Coupling, Bore Diameter 1 1/2 in, Bore Diameter 2 1/2 in, Bore Type Round Keyed, Clearance Diameter 1 in, Coupling Construction One-Piece, Coupling Material Stainless Steel, Coupling Outside Diameter 1 in, Different Bore Sizes No, Keyway Depth 1 1/16 in, Keyway Depth 2 1/16 in, Minimum Bore Diameter 1/2 in, Keyway Width 1 1/8 in, Keyway Width 2 1/8 in, Maximum Bore Diameter 1/2 in, Maximum Speed 3,500 RPM, Maximum Torque 138 in-lb, Overall Length 1 1/2 in
