Shaft Collar, Std, Set Screw, 5/16inBoredia
Mfr # C-031
Zoro # G2668517
product price:Â
$
1.79
/ea
Key Features
Number of Pieces
1
Collar Style
Set Screw
Screw Size
10-32 x 1/8 in
Operating Temp. Range
0 Degrees to 300 Degrees F
Screw Material
Carbon Steel
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- C-031
- Zoro #
- G2668517
- UPC #
- 044861090831
- Country of Origin
- United States
- Number of Pieces
- 1
- Collar Style
- Set Screw
- Operating Temp. Range
- 0 Degrees to 300 Degrees F
- Screw Material
- Carbon Steel
- Item
- Shaft Collar
- System of Measurement
- Inch
- Standards
- DFARS Compliant, ISO Certified, REACH Compliant, RoHS3 Compliant
- Bore Tolerance
- +0.0005/+0.0025 in
- Screw Seating Torque
- 35 in-lb
- Included Screws
- (1) Set Screw
- Collar Construction
- 1-Piece
- Collar Material
- Carbon Steel
- Collar Material Finish
- Zinc Plated
- Screw Material Finish
- Black Oxide
- Minimum Operating Temperature
- 0 Degrees F
- Collar Material Grade
- 1215
- Shaft Locking Type
- Set Screw
- Maximum Operating Temperature
- 300 Degrees F
- Bore Type
- Round
- Screw Material Grade
- 4140
Description

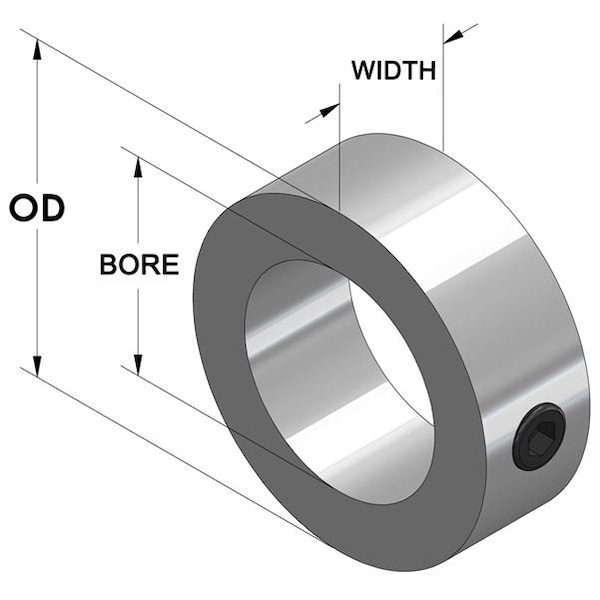

Shaft Collar, System of Measurement Inch, Bore Type Round, Bore Diameter 5/16 in, Bore Thread Size Not Applicable, Collar Outside Diameter 5/8 in, Inside Height to Flat Not Applicable, Clearance Diameter 0.63 in, Collar Width 5/16 in, Collar Material Carbon Steel, Keyway Width Not Applicable, Collar Material Grade 1215, Keyway Depth Not Applicable, Thread Direction Not Applicable, Center to Lever Top Not Applicable, Collar Construction 1-Piece, Screw Material Carbon Steel
