Shaft Collar, Std, SetScrew, 1-1/4inBoredia
Mfr # CRC-125-S
Zoro # G0244907
product price:Â
$
65.59
/ea
Key Features
Number of Pieces
1
Collar Style
Set Screw
Screw Size
3/8"-16 x 3/8 in
Operating Temp. Range
-40 Degrees to 800 Degrees F
Screw Material
Stainless Steel
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- CRC-125-S
- Zoro #
- G0244907
- UPC #
- 044861420362
- Country of Origin
- United States
- Number of Pieces
- 1
- Collar Style
- Set Screw
- Operating Temp. Range
- -40 Degrees to 800 Degrees F
- Screw Material
- Stainless Steel
- Standards
- DFARS Compliant, ISO Certified, REACH Compliant, RoHS3 Compliant
- System of Measurement
- Inch
- Item
- Shaft Collar
- Bore Tolerance
- +0.0005/+0.0030 in
- Screw Seating Torque
- 235 in-lb
- Included Screws
- (1) Set Screw
- Minimum Operating Temperature
- -40 Degrees F
- Bore Type
- Round
- Collar Construction
- 1-Piece
- Collar Material
- Stainless Steel
- Resistance Properties
- Corrosion-Resistant
- Maximum Operating Temperature
- 300 Degrees F
- Shaft Locking Type
- Set Screw
- Screw Material Grade
- 304
- Collar Material Grade
- 316
- Collar Material Finish
- Bright
Description

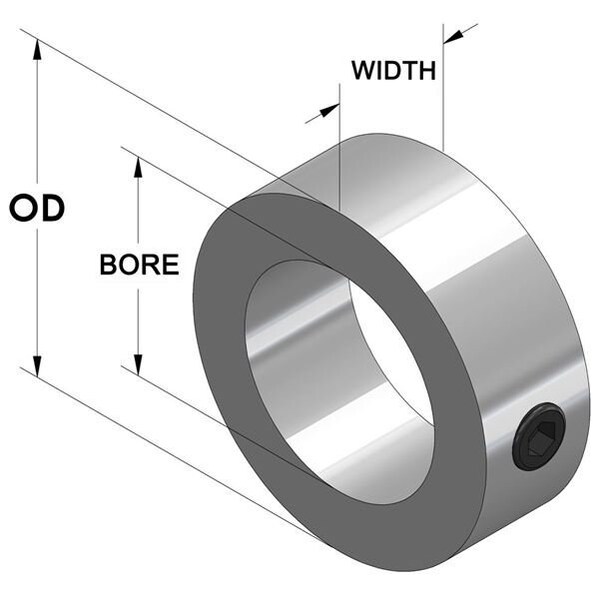

Shaft Collar, System of Measurement Inch, Bore Type Round, Bore Diameter 1 1/4 in, Bore Thread Size Not Applicable, Collar Outside Diameter 2 in, Inside Height to Flat Not Applicable, Clearance Diameter 2 in, Collar Width 11/16 in, Collar Material Stainless Steel, Keyway Width Not Applicable, Collar Material Grade 316, Keyway Depth Not Applicable, Thread Direction Not Applicable, Center to Lever Top Not Applicable, Collar Construction 1-Piece, Screw Material Stainless Steel
