Contact our U.S. based teamSpecifications
Product Information
MFR #
CL-W
Zoro #
G4635198
UPC #
-
Country of Origin
Unknown
Dimensions
Display Case Size
110 mm x 110 mm
Depth Behind Panel
30 mm
Details
Features
Keypad Adjustment of Masthead Alignment; 7 Levels of Display Backlighting
Type
Wind Repeater
Current Consumption
50 mA
Supply Voltage
12V DC
Compatibility
Standard Horizon CP180; CP300 Plotter
Anemometer Head
210 mm x 140 mm
Description

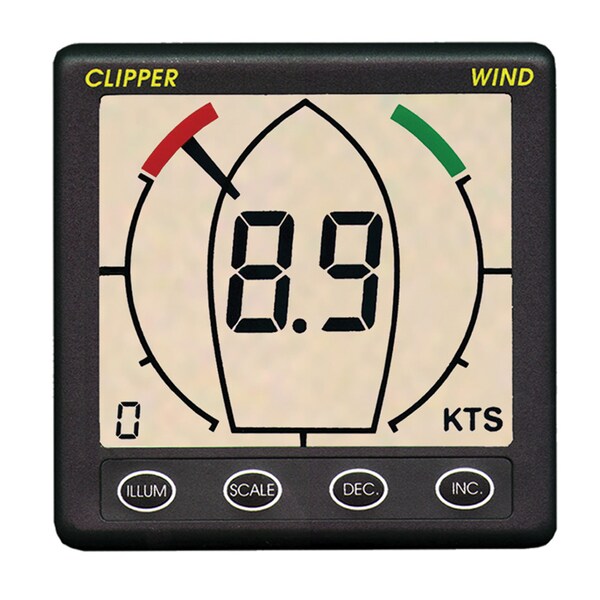

The Clipper Wind system shares the same 110mm square case as its sister instruments in the Clipper range. the display is exceptionally large and clear, with 60 segments for full 360 degree direction indication. Windspeed is shown in knots, M.P.H. or Metres/second. The pointer style is selectable, from the single segment shown above, to multi segments for greater clarity or a windex style indicator. The Masthead unit is well proven and supplied with 20 metres of cable as standard. Technical Specifications: Supply voltage Nominal 12v DC Consumption, 50mA+ (25mA for display illumination max) Keypad adjustment of masthead alignment 7 levels of display backlighting Display case size 110 x 110 mm Depth behind panel 30mm Anemometer head 210 x 140mm 5 and 20 meter extension cables available Compatible with Standard Horizon CP180 and CP300 plotters
