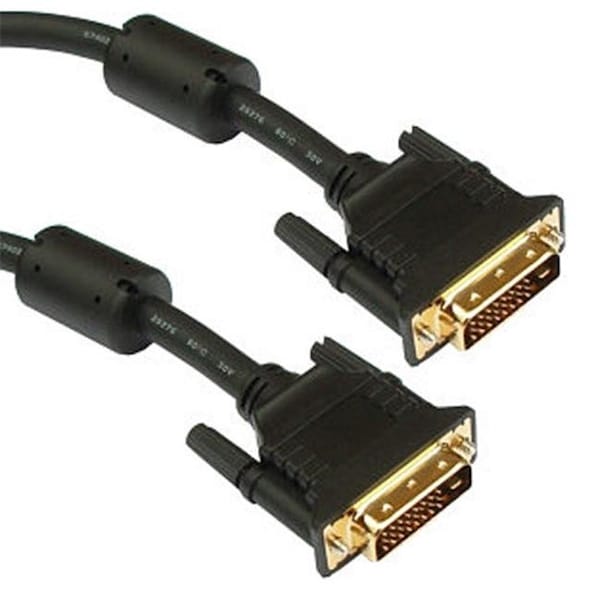

364-N DVI-D Digital to DVI-D Digital Dual Link M-M Cable -50FT- Gold Plated

DVI-D Digital to DVI-D Digital Dual Link M/M Cable - 50FT (Gold Plated)

Digital Visual Interface (DVI) is the standard interface for a high-performance connection between PCs and flat panel displays, digital CRT displays, projectors, and HDTV. The DVI-D Digital Cable delivers the high-performance, high-bandwidth interface needed for video displays of today while leaving headroom for the products of tomorrow. These precision-engineered cables are fully compliant with the DVI standard defined by DDWG (Digital Display Working Group). The DVI-D dual link configuration provides enough bandwidth for resolutions up to 2560x1600 and allows high speed digital transmission up to 9.9 Gbps.

Specs & Features:

Connector Type: DVI-D male to DVI-D male

Signal Type: Digital

Connector Finish: Gold

Length: 50ft

Pin Configuration: 24 + 1

Conductor Plating: None

Shielding level: Triple

Shielding type: EMI

Ferrite Cores: Yes

1080p support: Yes

Bandwidth: Dual Link

Maximum Resolution: 2560x1600

Min Clock Freq.: 21.76 Mhz

Max Clock Freq.: 165 Mhz x 2

Max Thoroughput: 9.9 Gbps

Pixels per cycle: 2

Bits per Pixel: 24

DDWG Compliant: Yes

HDCP Compliant: Yes

ROHS Compliant: Yes

UL Certified: Yes

Cmple continually strives to improve its product line to bring our customers the best products available. Therefore, changes may be made to listed specifications without prior notice. Item recieved may not match photo or specs shown.
